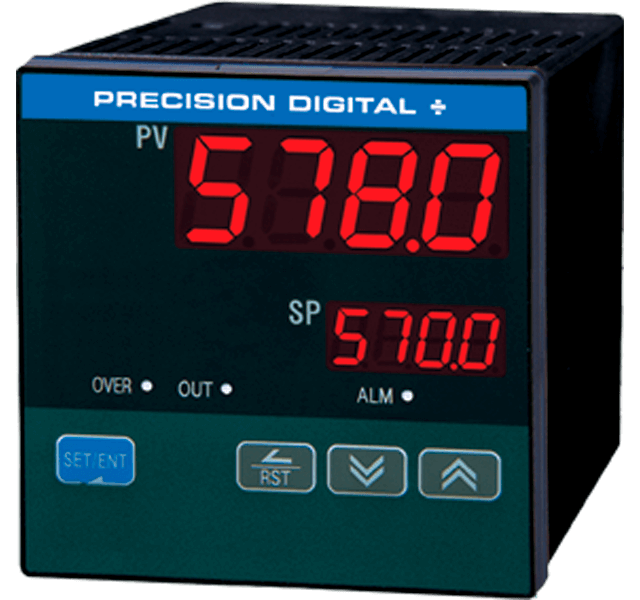

PD570 Series NOVA Limit Controller
Brand: Precision Digital Corporation
The Nova PD570 is a digital limit controller that accepts a wide variety of process and temperature inputs and is available in 1/16 and 1/4 DIN sizes.
Its universal input accepts thermocouple, RTD, and voltage inputs, and it can be easily configured for a 4-20 mA input.
It features a latching relays, an alarm relay, and an RS485 serial communication option which includes protocols for master/slave set point control, Modbus® ASCII and RTU, as well as PC software.
Features- Thermocouple, RTD, & Process Input
- Universal Power Supply 100-240 VAC
- Latching Relay High or Low Limit Control
- 1 Latching Relay & 1 Alarm Relay
- Retransmitting 4-20 mA Output
- RS-485 Serial Communications Option
- Modbus® RTU/ASCII Communications
- Free Operating & Data Logging Software
- IP55 & IP65 Fronts
- 1/16 & 1/4 DIN Sizes
- 3 Year Warranty
Specifications
Power Supply
- 100-240 Vac, 50/60 Hz, 10 W
Cold Junction Reference
- Automatic
- Off
Enclosure, Body Material
- Impact-Resistant Plastic
Approvals & Certifications
- UL & C-UL
- CE
Environmental Protection
- IP55
- IP65
Humidity
- 20 to 90% RH Non-Condensing
Isolation
- 2,300 V Input/Output-to-Powerline
- 4 kV Relay Output to Input/Output / Powerline
Operating Temperature
- 10° to 50° C (50° to 122° F)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Display
- -1999 to 9999
- Dual 4-Digit Display
- Red LEDs
