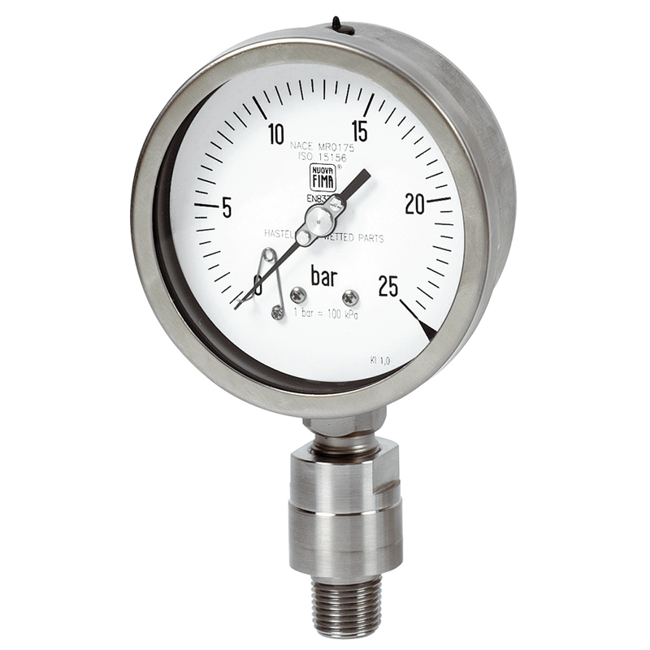

Nuova Fima Bourdon Tube Pressure Gauge, MGS37 DN100-150

MGS37 DN100-150 Bourdon Tube Pressure Gauge

Brand: Nuova Fima
Add Product to My Catalog

These instruments are designed for petrochemical industry.

They are built to resist to the most severe conditions created by H2S and by the environment.

The quality of the materials used to build the sensible element allows their use with high frequency pulsating pressures.

The TIG welding between the case and the process socket, strengthens the instrument and assures a better tight in case of dampening fluid.

The advantages of filling the case of the instrument with a dampening fluid are: reduced pointer fluctuation, reduced wear of rotating parts of the movement when pulsing vibrations and pulsations occur.

Moreover condensation and corrosive atmospheres which could damage the internal

Specifications

Brand

Accuracy Class

  • 1 as Per EN 837-1

Ambient Temperature Range

  • -13° to +149° F (-25° to +65° C)
  • Filled Model: +32° to +149° F (0° to +65° C) with Glycerine Filling
  • Filled Model: -40° to +149° F (-40° to +65° C) with Fluorinated Fluid Filling
  • Filled Model: -40° to +149° F (-40° to +65° C) with Silicon Oil Filling

Bourdon Tube

  • AISI 316L Stainless Steel

Case

  • Stainless Steel

Dial

  • Aluminum, White with Black Markings

Diaphragm Seal Filling Fluid

  • Silicone Oil

IP Protection Rating

  • Filled Model, Fillable Model: IP67 as Per EN 60529 / IEC 529
  • IP55 as Per EN 60529 / IEC 529

Leak Test

  • Helium Test Leak Search, Max.

Movement

  • Stainless Steel with Internal Limit Stops for Min. And, Max.

Over Pressure Limit

  • 30 % of Full Scale Value, Max.

Pointer

  • Adjustable, Aluminum, Black

Pressure Gauges Damping Liquid

  • Filled Model: Glycerine 98 %, Silicon Oil or Fluorinated Fluid

Process Fluid Temperature

  • -40° to +212° F (-40° to +100° C)
  • Filled Model: Max.

Ranges

  • From -30 to 0 Inches Hg to 0 to 6000 psi (From -1 to 0 to 0 to 400 bar or Equivalent Units)

Ring

  • Stainless Steel Bayonet Lock

Safety Designation

  • S1 as Per EN 837-2

Special Overpressure

  • 1000 psi (60 bar) for Pressure > 15 psi (1 bar) to ≤ 150 psi (10 bar)
  • 3500 psi (250 bar) for Pressure > 150 psi (10 bar) to ≤ 1500 psi (100 bar)
  • 6500 psi (450 bar) for Pressure > 1500 psi (100 bar) to ≤ 6000 psi (400 bar)

Wetted Parts

  • Hastelloy C-276

Window Material

  • Tempered Glass

Working Pressure

  • 100 % of Full Scale Value for Static Pressure
  • 90 % of Full Scale Value for Pulsating Pressure

Documentation

Data Sheets
