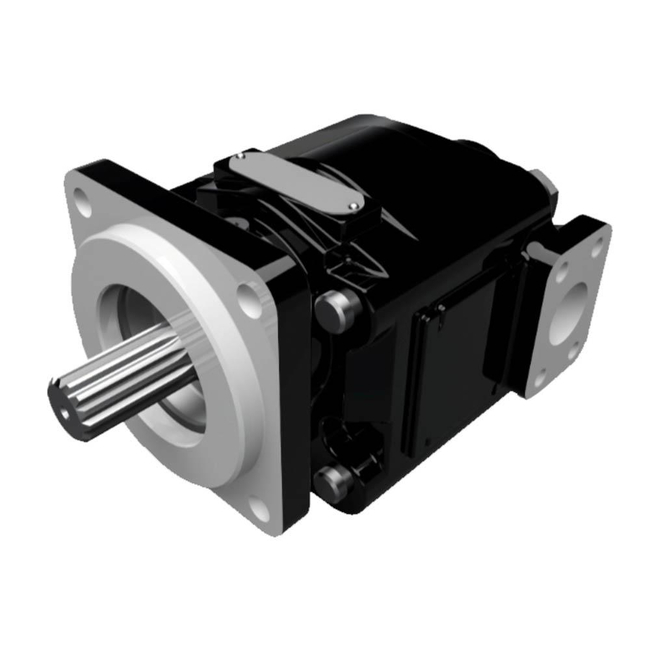

Cast Iron Pumps – PGP365 Series

Cast Iron Pumps - PGP365 Series

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s 365 series fixed displacement gear pumps offer high pressure durability due to their cast iron construction, making them ideal for high duty cycle mobile applications for the Construction, Forestry, and Oil & Gas markets.

They are available as a standard pump, clutch pump, and tandem pump.
Features
  • Three-piece cast iron construction for distribution flexibility
  • Cast Iron construction for durability
  • Balanced Thrust Plates minimize friction and leakage
  • Journal bearings for long life
  • Multiple sections available

Specifications

Brand

Body Material

  • Cast Iron

Case Drain Option

  • No

Charge Pump Option

  • No

Circuit Type

  • Open

Configuration

  • Single / Tandem / Multiple

Control Method

  • Relief, Load Sense, Priority, Unloader

Energy Recovery Capable

  • No

Filtration Option

  • No

Fluid Type

  • Standard Hydraulic Fluid / Phosphate Ester / Water Glycol

Maximum Displacement (cm3/rev)

  • 148

Maximum Displacement (inch3/rev)

  • 9

Maximum Flow (gpm)

  • N/A

Maximum Flow (Lpm)

  • N/A

Maximum Fluid Temperature (°C)

  • 80° C

Maximum Fluid Temperature (°F)

  • 180° F

Maximum Noise Level (dBA)

  • N/A

Maximum Operating Pressure (bar)

  • 241

Maximum Operating Pressure (psi)

  • 3500

Maximum Radial Shaft Load (kg)

  • 662

Maximum Radial Shaft Load (Lbs)

  • 1460

Maximum Speed (rpm)

  • 2400

Maximum Viscosity (SUS)

  • 7500

Maximum Weight (kg)

  • 32

Maximum Weight (Lbs)

  • 71

Media

  • N/A

Minimum Fluid Temperature (°C)

  • -20° C

Minimum Fluid Temperature (°F)

  • 0° F

Minimum Viscosity (SUS)

  • 50

Mounting Option

  • SAE, ISO , DIN

Port Connection

  • SAE, ISO , NPT, BSPP, ODT

Port Connection Type

  • Flange / Straight Threaded

Porting Location

  • Side Ports / Rear Ports

Pump Technology

  • Gear

Pump Type

  • Fixed

Rotation

  • Clockwise / Counter Clockwise / Bi-Rotational

Sensor Type

  • N/A

Shaft Type

  • SAE, ISO , DIN, Industry Specific

Thru-Drive Capability

  • Yes

  • Tire Trucks
  • Salt and sand spreaders
  • Aerial Lift
  • Low boy trailers
  • Live (Moving) Floor Trailers
  • Roll Off Trailers
