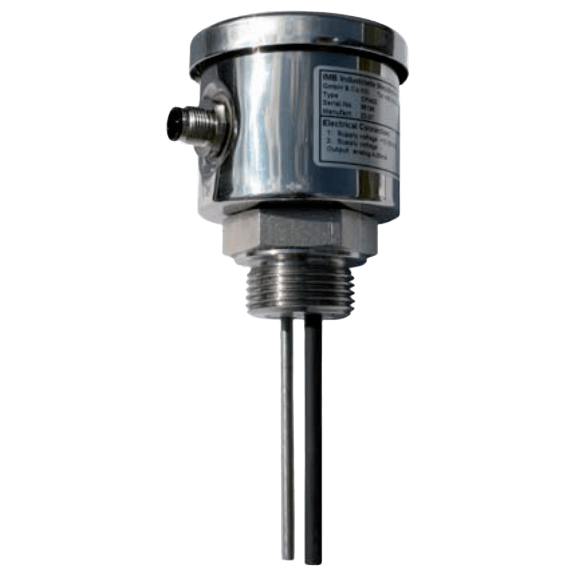

Trimod Besta Capacitive Analogous Filling Level Probe, Type CPA 02

Type CPA 02 Capacitive Analogous Filling Level Probe

Brand: Trimod Besta
Add Product to My Catalog

The sensor with 2 sensing probes are building an electrical condenser when being immersed into the liquid. The capacity of the condenser changes with its filling level. An electronic system integrated into the device converts the capacity change into an electrical standard signal 4-20mA proportionally to the filling level. Calibration 0% and 100% is made at keypress.
Features
  • Analogous output 4-20mA proportional to filling level
  • Maximum measurement range: 2000 mm; also suitable for short measuring
  • Simple calibration at keypress
  • Operating pressure maximum 10 bar
  • Vertical installation
  • Process connection BSP 1“ stainless steel 1.4571 / PVDF
  • Electrical connection: Cable outlet, plug M12
  • Measuring accuracy: 1.5% of measurement range
  • Material housing: stainless steel 1.4301
  • Sensor beams are exchangeable and can be shortened

Specifications

Brand

BSP Connection

  • 1” BSP Male

Enclosure, Body Material

  • 304 Stainless Steel, 1.4301

Environmental Protection

  • IP65

Documentation

Data Sheets
