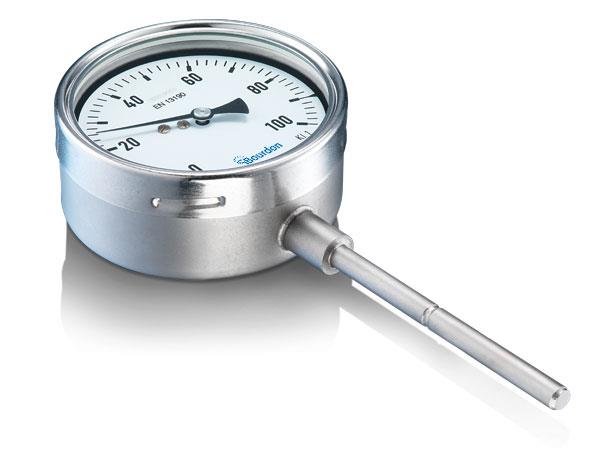

TSS160 Gas Filled Thermometer
Brand: Bourdon
Features
- For corrosive gasses and liquids
- Class 1 according to EN 13190
- Wetted parts and case material stainless steel
- Option: Case material 1.4404 (316L) for aggressive atmosphere
Specifications
Brand
Accessories
- Sliding Connections & Thermowells, See Datasheets: B51.01 (AGF/AGW) & T6.215 (Ø 8)
Accuracy According to EN 13190
- Class 1
Approvals & Certifications
- ATEX
Bezel Ring Material
- Stainless Steel 1.4301, AISI 304
Case Material
- Stainless Steel 1.4301, AISI 304
Dial
- White, Aluminum
Immersion Tube Material
- Stainless Steel 1.4541, AISI 321
IP Protection Rating
- IP65
Movement Material
- Brass
Nominal Size
- 160 mm
Pointer
- Black, Aluminum
Temperature Limitation
- 130 % of Full Scale
Temperature Range
- -200° to +800° C
Window Gasket
- Elastomer
Window Material
- Instrument Glass
- Food & Beverage
- Oil & Gas / Chemical
- Laboratory & Medical
- Energy
