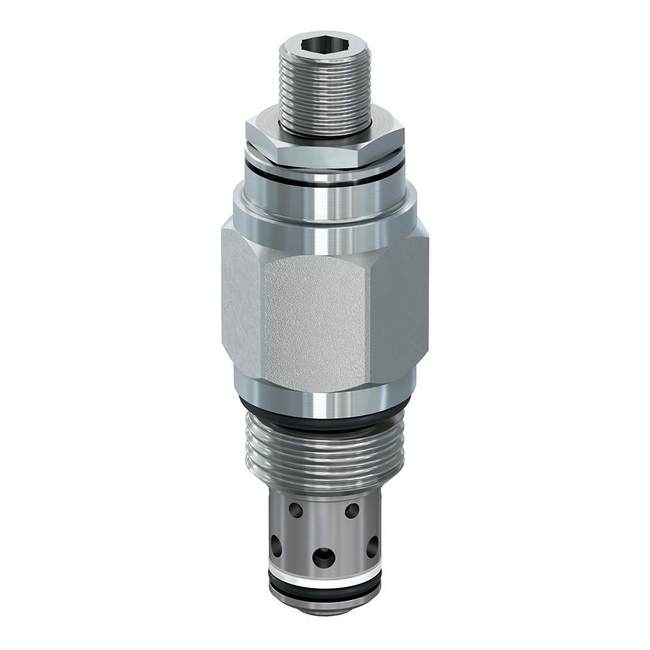

Pressure Compensated Flow Control Valves

Pressure Compensated Flow Control Valves

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s family of pressure compensated flow control valves feature a proven design that allows for a reliable and repeatable flow compensation curve throughout a wide pressure range.

These valves can operate with hydraulic system flows as high as 56 lpm and pressures up to 420 bar with the option of an integrated adjustable or tuneable reverse free-flow check valve.

Parker’s pressure compensated flow control valves are ideal for cylinder or motor control and/or bleed-off applications within a broad range of markets, such as the agriculture, construction, material handling, industrial, and oil & gas markets.
Features
  • Minimal flow change with pressure variation
  • Reverse flow function
  • Hardened working parts for maximum durability
  • Tamperproof options available
  • All external parts zinc plated

Specifications

Brand

Adjustment Type

  • Screw Adjustment, Knob Adjustment, Tamper Resistant Cap, Fixed, Detented Knob

Cavity Size

  • C08-2, C10-2

Configuration Type

  • Reverse Flow, Partial Reverse Flow, Reverse Check

Filtration Ratings

  • ISO 4406: 1999 Code 18/16/13

Flow Range (gpm)

  • N/A, 0.5-0.8, 0.8-1.2, 1.1-1.7, 1.6-2.2, 2.1-3.1, 3-4.5, 4.3-6.7, .3-1, .75-2.2, 2-4.5, 4-8

Flow Range (Lpm)

  • N/A, 1.9-3.0, 3-4.5, 4.1-6.4, 6-8.3, 7.9-11.6, 11.3-16.9, 16.1-25.1, 1.1-3.8, 2.8-8.3, 7.5-16.9, 15-30

Flow Rate Accuracy

  • N/A, 20 %, 15 %, 10 %

Function

  • Pressure Compensated

Installation Torque (Lbs/Ft)

  • 30, 16, 37

Installation Torque (Nm)

  • 40, 22, 50

Maximum Inlet Pressure (bar)

  • 420, 245, 210

Maximum Inlet Pressure (psi)

  • 6000, 3500, 3000

Operating Temperature (°C)

  • -34° to +121° C, -26° to +204° C

Operating Temperature (°F)

  • -30° to +250° F, -15° to +400° F

Performance: Flow Rate Range

  • N/A, 30 %

Rated Flow (gpm)

  • 5.3, 6, 7, 10.6, 5.5, 15

Rated Flow (Lpm)

  • 20, 22.5, 26.5, 40, 20.6, 56

Rated Fluid Viscosity (CSt)

  • Mineral-based or Synthetic with Lubricating Properties at Viscosities of 45-2000 SSU (6 to 420 cSt)

Seal Material

  • Nitrile, Fluorocarbon

Standard Flow Setting (gpm)

  • N/A, 1, 2, 3, 4, 5, 6, 0.5

Standard Flow Setting (Lpm)

  • N/A, 3.8, 7.5, 11.3, 15, 18.8, 22.5, 1.9

Valve Material

  • All Parts Steel. All Operating Parts Hardened Steel

Weight (kg)

  • 0.13, 0.23, 0.2, 0.15

Weight (Lbs)

  • 0.29, 0.5, 0.44, 0.33

  • Accumulator Bleed-Off
  • Motor Speed Control
  • Cylinder Speed Control
  • Power Units
