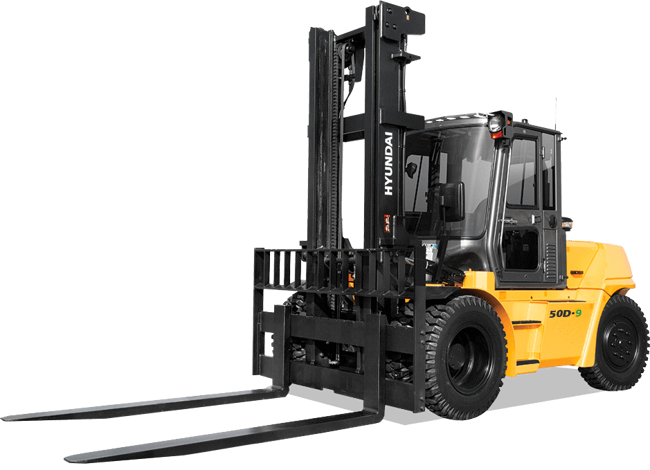

Hyundai 50, 70D-9
Brand: Hyundai Construction Equipment Americas, Inc
Hyundai introduces a new line of 9-series diesel forklift trucks. The newly designed four-wheel counterbalance trucks provide operator comfort, increased productivity and easy maintenance.
Features- Maximum performance
- Spacious operator cab
- Switch-type parking brake
- 4.3 inch LCD color cluster
- Truck inclination warning system
- Maximum speed limit function
- Easy serviceability
- Password starting system
- Weight indicator (optional)
- Full automatic temperature control (FATC)
- Operator presence sensing system (OPSS) for safe operation
Specifications
Load Capacity
- 11,000 to 15,500 lb
Travel Speed (Unloaded)
- 20.8 mph to21 mph
Engine Model
- CUMMINS QSF3.8 Tier 4 Final
Power (HP/RPM)
- 101 hp / 2,200 rpm
Length to Face of Forks
- 138 in to 144 in
Overhead Guard Height
- 104 in
Overall Width
- 82.1 in to 86.3 in
Turning Radius
- 130.4 in to 135.2 in
Manufacturer
- Hyundai
Manufacturer’s Model Designation
- 50D-9
- 70D-9
Drive
- Diesel
Type of Operation
- Seated
Load Center Distance
- 24
Load Distance, Center of Drive axle to Fork
- 24
Wheelbase
- 91
