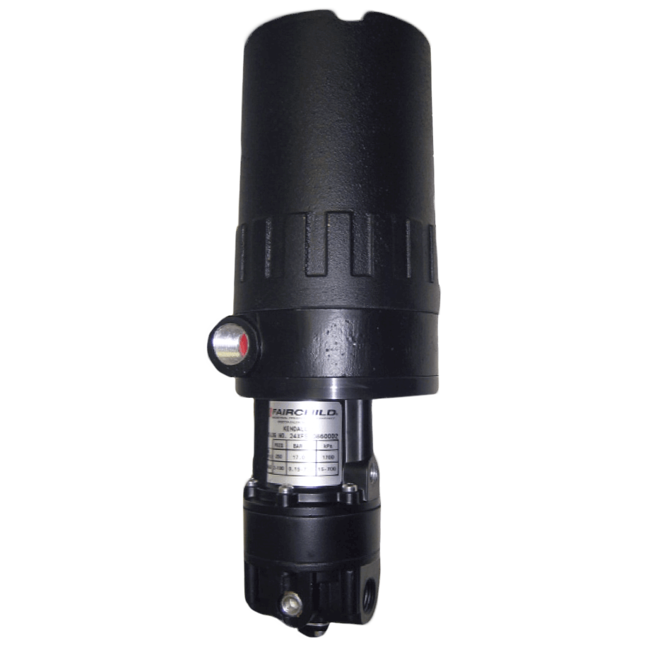

Model 24XFM High Pressure Motorized Regulator
Brand: Fairchild Industrial ProductsThe Rotork Fairchild 24XFM M/P Converter is a Motor Driven Pneumatic Regulator with motor assembly enclosed in a explosion proof housing.
The motor is coupled to a no-bleed Model 10 pneumatic regulator assembly to provide the desired operating pressure range for any application.
The 24XFM requires a 12-24 VDC power supply and has the option of DC Pulse or DC Analog input.
The Fairchild 24XFM motorized regulator line will handle a 500 psi, 35 BAR maximum supply pressure and offers four (4) different set point pressure ranges from 0-30 psig [0-2 bar], to 0-150 psig [0-10 bar].
Features- Output pressure locks in last position in event of power failure or signal loss.
- Stepper Motor equipped configuration
- Standard explosion-proof NEMA 4X housing
- End of travel limit switches
Specifications
Approvals & Certifications
- CRN
- FM Approved for Class I, Div. 1, Groups B, C, D Gases
BSP Connection
- 1/2” BSPP Female
- 1/2” BSPT Female
- 1/4” BSPP Female
- 1/4” BSPT Female
- 3/8” BSPP Female
- 3/8” BSPT Female
Consumption
- 1 A
Enclosure, Body Material
- Aluminum Housing
Flow Capacity
- 60 scfm (102 m³/hour) at psig: 100 (kPa: 700, bar: 7) Supply
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
- 3/8” NPT Female
Power Options
- DC Pulse / Analog
Power Requirement
- 12-24 Vdc
Pressure Range
- bar: 0 to 10
- kPa: 0 to 1,000
- psi: 0 to 150
Supply Pressure - Maximum
- bar: 35
- kPa: 3,447
- psi: 500
Trim Material
- Stainless Steel
