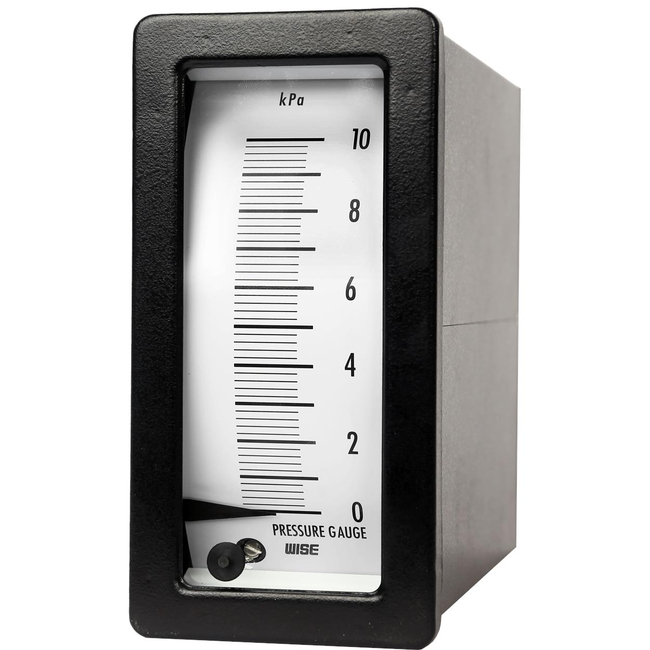

Draft Gauge P410, P420 Series
Brand: Wise Control IncP410 and P420 series are designed to measure low, vacuum or compound pressure.
These series are available in panel mounting.
Specifications
Brand
Accuracy
- ± 2.0 or ± 3.0 % of Full Scale
Case
- Black Finished 304 Stainless Steel: P420
- Black Finished Steel: P410
Dial
- White Aluminum with Black Graduations
Element
- 316L Stainless Steel
Movement
- Brass
Nominal Diameter
- 192 (W) x 96 mm (H) (P Typical)
- 96 (W) x 192 mm (H) (R Typical)
Pointer
- Black Painted PBs2 Alloy
Pressure Connection
- 316 Stainless Steel
Process Connection
- 3/8”, 1/2” PF, NPT & PF
Scale Range (MPa, KPa, bar)
- Compound: -0.2 ~ 0.2 to -5 ~ 5 kPa
- Pressure: 0 ~ 0.5 to 0 ~ 10 kPa
- Vacuum: -1 ~ 0 to -0.5 ~ 0 kPa
Temperature Effect
- ± 1.0 % Per 10° C of Full Scale
- Accuracy at Temperature Above & Below the Reference Temperature (20° C) Will be Effected by Approximately
Window Material
- Safety Glass
Working Pressure
- Over Range Protection: 130 % of Full Scale
- Steady: 75 % of Full Scale
Working Temperature
- Ambient: -20° to 65° C
- Fluid: Max.
