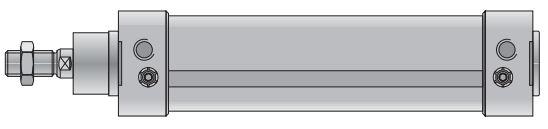

Series AZ ISO Cylinder
Brand: Parker ORIGA Corporation
Features
- Stainless Steel Rod
- Magnetic Piston
- Adjustable Cushions
- Pre-Lubricated Design
- Captive Cushion Needles
1 - 12 of 448 Part Numbers
AZ 1 032/ - —
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 32 mm
- Stroke - mm
- Options - Standard
AZ 1 032/ - B2L
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 32 mm
- Stroke - mm
- Options - Rear, Single End Porting
AZ 1 032/ - D2L
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 32 mm
- Stroke - mm
- Options - Front, Single End Porting
AZ 1 032/ - V
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 32 mm
- Stroke - mm
- Options - Viton
AZ 1 032/CONTACT FACTORY - —
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 32 mm
- Stroke - > 500 mm
- Options - Standard
AZ 1 032/CONTACT FACTORY - B2L
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 32 mm
- Stroke - > 500 mm
- Options - Rear, Single End Porting
AZ 1 032/CONTACT FACTORY - D2L
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 32 mm
- Stroke - > 500 mm
- Options - Front, Single End Porting
AZ 1 032/CONTACT FACTORY - V
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 32 mm
- Stroke - > 500 mm
- Options - Viton
AZ 1 040/ - —
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 40 mm
- Stroke - mm
- Options - Standard
AZ 1 040/ - B2L
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 40 mm
- Stroke - mm
- Options - Rear, Single End Porting
AZ 1 040/ - D2L
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 40 mm
- Stroke - mm
- Options - Front, Single End Porting
AZ 1 040/ - V
- Versions - Single Rod
- Actuation - Double-Acting, Cushions
- Bore - 40 mm
- Stroke - mm
- Options - Viton
1 - 12 of 448 Part Numbers
Specifications
Brand
Type
- ISO 6431
- VDMA 24562
- CETOP RP43P
Series
- AZ
Configurations
- AZ Double Acting, Single Rod, Magnetic Piston, Cushions
- AZD Double Acting, Double Rod, Magnetic Piston
Materials - Barrel
- Extruded Aluminum, Anodized (10 µ
Materials - End Caps
- Die Cast Aluminum
Materials - Piston Rod
- Stainless Steel
Materials - Rod Bearing
- Teflon Impregnated Bronze
Materials - Piston
- Molded NBR
- Optional: Viton
Materials - Cushions Needle
- Brass
Materials - Seals
- Urethane
- Optional: Viton
Materials - End Cap Screws
- Steel
- Zinc-Plated
Operating Temperature
- Minimum: -5° F (-20° C)
- Maximum: +176° F (+80° C)
Operating Pressure
- Maximum: 145 psi (10 bar)
- Minimum: 15 psi (1 bar)
Normal Operating Pressure
- 90 psi (6 bar)
Lubrication
- Pre-lubricated at factory. If additional lubrication is required use oil compatible for NBR seal and designed for use in pneumatic systems.
Media
- Filtered and regulated compressed Air
Installation
- In any position
Stroke Length
- Up to 500 mm - Longer Contact factory
Piston Diameter
- 32
- 40
- 50
- 63
- 80
- 100
Port Sizes (Metric (G)
- G1/8
- G1/4
- G3/8
- G1/2
Rod Diameter (mm)
- 12
- 16
- 20
- 25
Cushion Lengths All Cylinders (mm)
- 21
- 25
- 28
- 30
- 37
