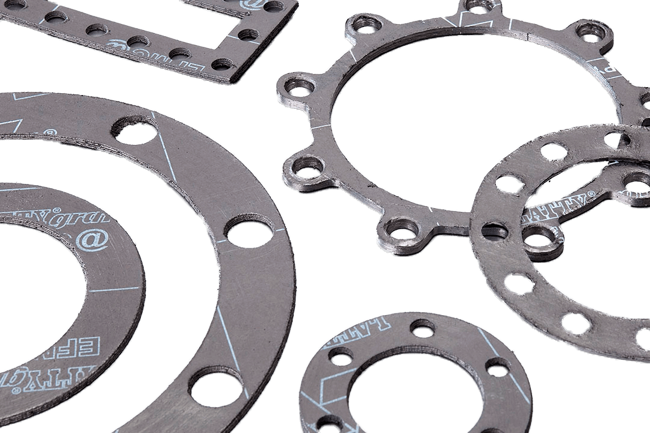

LATTYgraf HPML Graphite Multi-Layer High Pressure Seal
Brand: Latty International S.A.Natural expanded graphite based seal sheet, carbon content > 99%. Includes multiple stainless steel inserts and is impregnated with an oxidation inhibitor.
The insertion of stainless steel sheets improves pressure resistance, and facilitates handling and seal cutting.
Excellent chemical and thermal resistance. Its high creep resistance makes it possible to use it at high pressures and temperatures.
Specifications
Brand
Pressure
- 0 to 250 bar
- 0 to 25 MPa
- 0 to 3625 psi
Temperature
- -200° to 700° C
- -328° to 1292° F
Approvals & Certifications
- API 6FB
- DVGW
- BAM
pH
- 0 - 14
Fluids
- Water
- Steam
- Gas
- Hydrocarbons
Material
- Joints for Pipe Flanges
- Body/Bonnet Joints for Valves
- Cover and Manhole Joints
- Chemical
- Petrochemical
- Energy
