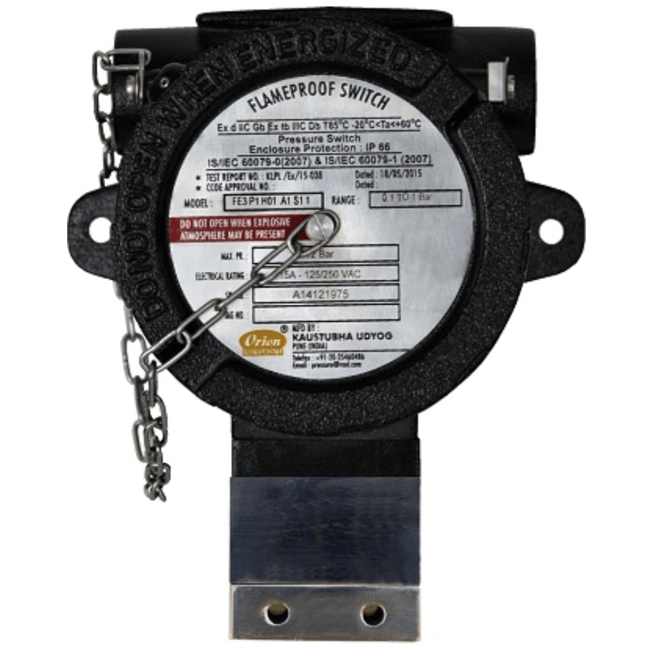

FE Series High Range Pressure Difference Switch
Brand: Orion InstrumentsThese switches have been designed for use in hazardous area and for severe applications in the oil and gas sectors like oil and gas pipelines, petrochemical plants, refineries and generally in atmospheres which are potentially explosive.
All switches are designed for gas group IIC, the most severe of the explosive gases, and hence can be used in lower severity atmospheres, typically in IIA and IIB.
With grey cat iron enclosures, these can also be used in mines.
SS Enclosures can also be offered for highly corrosive atmospheres.
Switches can be configured with a lot of options like electrical elements and sensing element configurations to suit the intended working media.
Features- Compact, rugged design
- Enclosure protection: IP66 standard
- Reliable, accurate micro switch arrangement can be provided
- Easy, safe wiring connections
- High/low pressure options available
- Accuracy: ±1% Full Scale, ±2% Full Scale
Specifications
Brand
Accuracy
- ± 1 % of Full Scale Range
- ± 2 % of Full Scale Range
Applications
- Bulk Drug & Pharma
- Chemical Industry
- Oil & Gas
- Petrochemical Plants
- Refineries
Approvals & Certifications
- IS/IEC 60079-1: 2007, IS/IC 60079-0: 2011, 60079-1: 2007 & 60079-31: 2008
- KLPL
- PESO
BSP Connection
- 1/4” BSP Female
Cable Entry
- 1/2” NPT Female
- 3/4” NPT
- M20 x 1.5 Female
Diaphragm Material
- Neoprene
- Teflon
Differential Pressure
- psi: 1.47 to 4.35 (kPa: 12 to 30, bar: 0.12 to 0.30) - Max.
Electrical Rating
- Microswitch: 15 A at 250 Vac
- Microswitch: 5 A at 250 Vac
Enclosure, Body Material
- Aluminum
- Cast Iron
- Stainless Steel
Environmental Protection
- Flameproof
- IP66
Head Material
- Aluminum
- Grey Cast Iron
- Stainless Steel
Materials of Construction
- HP Plunger, LP Plunger: 316 Stainless Steel
NPT Connection
- 1/4” NPT Female
O-Ring Material
- Teflon
Operating Pressure
- Maximum
Operating Temperature
- Operating Ambient Temperature: 0° to 60° C (32° to 140° F)
Pressure Type
- Differential
Process Connection Material
- 316 Stainless Steel
Process Temperature
- Media Temperature: for Non-Metallic Diaphragm, Max.
Repeatability
- ± 1 % of Full Scale
Screw Material
- CSK Screw: Stainless Steel
Set Point - Decreasing
- bar: 0.1 to 3.6
- kPa: 10 to 360
- psi: 1.45 to 52.21
Set Point - Increasing
- bar: 0.1 to 3.6
- kPa: 10 to 360
- psi: 1.45 to 52.21
Switch Quantity
- SPDT: 2 Switches
Switch Type
- DPDT
- Micro Switch
- SPDT
System Pressure
- bar: 0 to 12
- kPa: 0 to 1,200
- psi: 0 to 174
