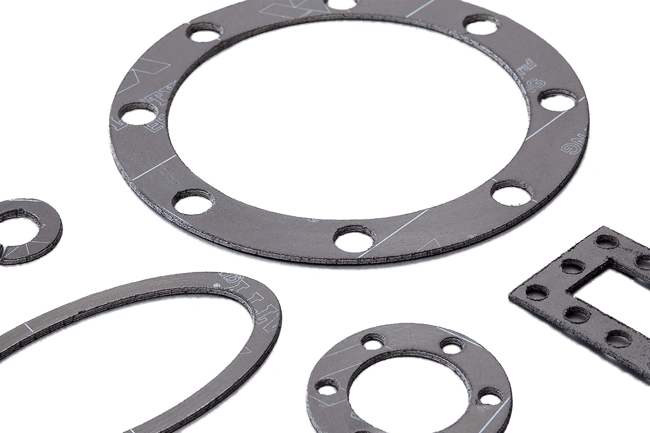

LATTYgraf EFA NG Sheet with Pure Performance Graphite for Static Seal Applications
Brand: Latty International S.A.Multiple layers of thin high-purity expanded graphite (>99.5%) combined with stainless steel sheets specially designed to promote adherence of the graphite without gluing.
This bonding method allows the product to retain the intrinsic properties of soft graphite, thereby simplifying sheet handling and gasket production.
Compatible with all fluids except those with strong oxidizers, suitable for use in the chemical and petrochemical industries, energy production and all industrial applications in general.
High-purity graphite gasket, easy to cut.
Limitations: precautions to be observed when used in oxidizing environments.
Specifications
Brand
Pressure
- 0 to 65 bar
- 0 to 6.5 MPa
- 0 to 942 psi
Temperature
- -210° to 650° C
- -346° to 1202° F
- Chemical and Petrochemical Industries
- Energy
- All Industrial Applications in General
