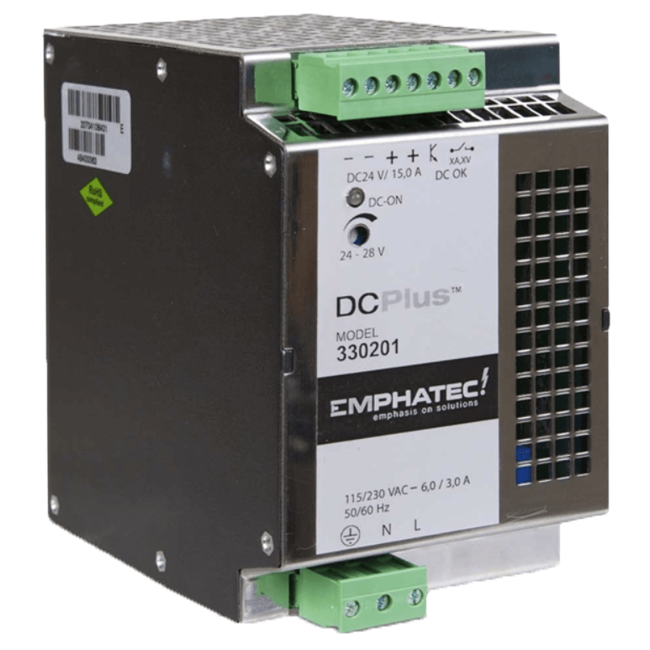

DC Plus 360W Power Supply
Brand: EmphatecLike the 600W version, the DC Plus 360W power supply offers high power in a very compact size. You only need 80 mm of DIN rail to install a 24 Vdc at 15 A power supply.
The input is 115/230 Vac (autoranging) making it suitable for global applications. Other features include a fault relay, plug and socket connections, adjustable output voltage, and short circuit, over voltage and over temperature protection.
FeaturesUniversal input 24 Vdc at 15 A Class 1 Division 2 certified for hazardous location requirements Compact - just 80 mm wide
Specifications
Brand
Applications
- Cooling: Convection, No Internal Fan
- Overcurrent Recovery: Automatic Restart
Approvals & Certifications
- ATEX: Zone 2 EEX N CII C T4U
- CE
- CSA (C,US): UL 508, UL 60950-1, CSA 22.2-No.14, CSA 60950-1-3
- UL (C,US): UL 60079-15-02, CSA 60079-15-02, Class I, Div. 2, Groups A, B, C, D
Circuit Protection
- Output Overvoltage Protection: 35 Vdc
Current
- Inrush Current (115 Vac): < 16 A
- Inrush Current (230 Vac): < 25 A
Electrical Connectors
- 28 to 12 AWG (0.5 to 2.5 mm²)
- Plug
Electrical Rating
- Fault Relay: 1 Form A, Normally Closed, Max.
Frequency
- Input Frequency: 47 to 63 Hz
Indication
- Bi-Color LED: Green (OK), Red (Fault)
Input
- 85-264 Vac
Mounting
- DIN Rail Mounting
Operating Temperature
- -25° to 40° C (-13° to 104° F)
Output
- 24-28 Vdc
- Output Current: 15 A at 24 Vdc
