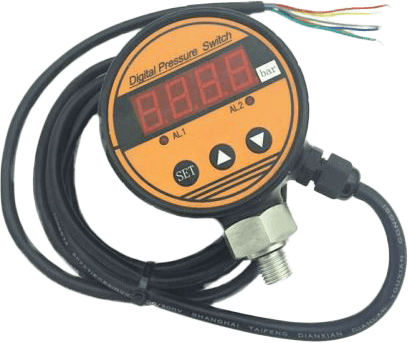

2-Relay Output Digital Pressure Switch Controller

Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Add Product to My Catalog

Digital pressure controller is a pressure measurement & control product with intelligent digital display, it is combined the functions of pressure measurement, display, output and control.

It is widely used in water and electricity industry, petroleum industry, chemical industry etc.

UPS6 intelligent 2-relay output digital pressure switch controller combines the functions of pressure measurement display as well as control.

The front head of UPS6 is using high precise pressure sensor its output signal is amplified and processed by high accuracy amplifier, then transmitted into A/D converter to convert the signal to be digital signal that can be processed by micro processor.

The processed signal can control two switches, and realize the pressure measurement and control for system.

UPS6 intelligent 2-relay output digital pressure switch controller is widely used for pressure measurement and control of fluid media in many areas like in electricity, water, petroleum, chemical, mechanical, hydraulic and other industries.
Features
  • 4-digit 0.56" LED display, no value error
  • Switch point can be set between zero and span
  • LED display easy for observation
  • Button adjustment and field settings of various parameters, convenient operation
  • 2 way relay output 220 V/3 A
  • Strengthen the anti interference design, suitable for all kinds of electromagnetic harsh industrial environment

View_Details

Specifications

Brand

Pressure Ranges

  • -1...0 ~ 1...1000 bar

Overload Pressure

  • 150 % Full Scale

Pressure Type

  • Gauge

Accuracy

  • 0.5 % Full Scale

Display

  • -1999 ~ 9999

Consumption

  • < 3 W

Loading Capacity

  • 3 A / 220 Vac

Long-Term Stability

  • < 0.2 % Full Scale/year

Supply Voltage

  • 24 Vdc

Operating Temperature Range

  • -40° C ~ +85° C

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Process Connection

  • G1/4 or Others

Electrical Connection

  • 6-Core Cable

Power Consumption

  • < 3 W

Housing Material

  • ABS Engineering Plastic

Housing Diameter

  • 82 mm

Protection

  • IP65

  • Water and Electricity Industry
  • Petroleum Industry
  • Chemical Industry
  • Mechanical & Hydraulic Industry

Documentation

Data Sheets
