TKB In-Line Paddle Wheel Flow Meter
Brand: Truflo®The TKB Series battery operated in-line plastic paddle wheel flow meter has been designed for tough industrial applications.
The TKB series paddle wheel flow transmitter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids.

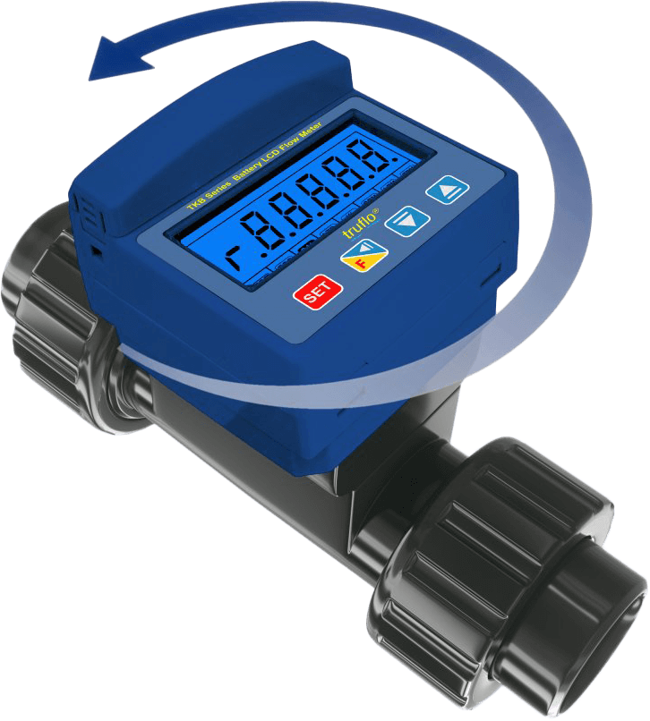

The all plastic in-line digital flow sensor is equipped with a 360° rotatable vivid backlit LCD display showing both Flow Rate & Flow Total.
The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.
The TKB series plastic flow meters incorporate an all new re-designed air-foil designed rotor that reduces turbulence and drag as the liquid passes by up to 92%.
The zirconium rotor pin has been polished to a mirror finish and provides superior chemical and wear resistance over a metal pin.
It should be noted that the rotor has been outfitted with two (2) ceramic bushings.
This allows for much finer rotor pin to paddle alignment and greatly reduces paddle wobble that occurs without bushings.
Icon’s liquid flow meters incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings.
The TKB series battery operated liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.
The TKB in-line plastic flow meter incorporates a true-union design with body materials available in PVC, PP and PVDF.
The TK3B Series Stainless Steel Flow Meter has a 316SS body and is available with NPT, flanged or sanitary end connections.
Features- Battery Operated Back-lit LCD Display
- Flow Rate | Total
- Life-Time Warranty on Paddle Assembly
- Industry’s Highest Accuracy: +/- 0.5%
- Chemical Resistant Materials: PVC | PP | PVDF
- No Programming
- Tefzel® Paddle Wheel
- Zirconium Ceramic Rotor & Bushings
Specifications
Brand
Flow Total Meter
- Range = 0~999999
- Unit = Gallon or Liter or Ton Selectable
Flow Rate Meter
- Range = 0.0~999.9
- Unit = GPM or LPM or TPM Selectable
Operating Voltage
- 3.0 Vdc
Battery
- Lithium Battery
Housing Material
- Polycarbonate (UL 94V0)
Accuracy
- ± 0.5 % of Full Scale @ 25° C
Flow Velocity
- 10 m / s max
Operating Pressure
- 150 psi (10 bar) @ Ambient Temp-Non-Shock
Range Ability
- 10:1
Material
- Paddle = Tefzel
- Body = PVC / PP / PVDF / SUS 316
- Shaft / Rotor = Zirconium Ceramic
Operating Temperature
- -20° C to 80° C
Approvals
- CE
- ROHS
- NEMA 4X
- IP66
- Liquid Chemical Flow Measurement
- Filtration Systems
- Water & Wastewater Monitoring
- Industrial Chemical Distribution
- Process Chemical Skids
- Liquid Consumption
- Discharge Verification
