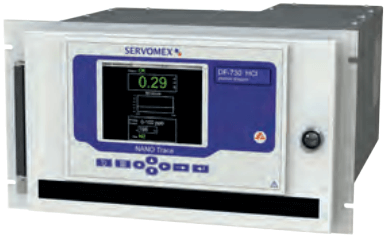

DF-730 NanoTrace Tunable Diode Laser Trace Moisture Analyzer
Brand: SERVOMEXDesigned to analyze moisture contamination in electronics grade HCl used in semiconductor fabs, the DF-730’s highly sensitive performance is ideal for quality control and leak detection applications.
Servomex’s industry-leading TDL sensing technology and a robust Herriot Cell enables a broad measurement range of 1 ppb to 10 ppm. By ensuring moisture only comes into contact with minimal optical components, the DF-730’s performance is unaffected by loss in mirror reflectivity - ensuring a fast response measurement that is stable, accurate and consistent.
This device is also optimized to deliver attractive affordability over product life.
The use of leading-edge TDL sensing technology provides zero drift, helping to extend maintenance periods and reduce calibration needs; these aspects combine to make the DF-730 an ideal solution for semiconductor fabs, with its high performance, ultra-stable monitoring capability and considerable operational cost-savings.
Specifications
Brand
Accuracy
- ± 5 % of Reading / ± 0.5 ppb, whichever is greater
Approvals & Certifications
- EU EMC Directive
- EU Low Voltage Directive (LVD)
- IEC 61010-1
Environmental Protection
- IP10
- NEMA 1
Operating Temperature
- 0° to 45° C (32° to 113° F)
Pressure Range
- Sample Pressure - psig: 5 to 30 (bar: 0.345 to 2.07, kPa: 34.5 to 207) (1.36 to 3.08 barA)
Range
- 0-10 ppm to 0-100 ppb
