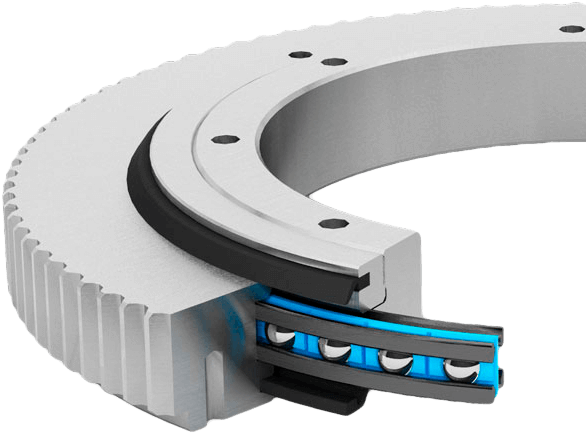

Bearing Assemblies - LVE Toothed / Aluminum Series
Brand: Franke GmbHFranke wire race bearings are based on a simple and ingenious principle. Single raceways made of hardened wire are provided with a raceway that is exactly adapted to the diameter of the rolling elements.
The rolling process does not take place directly between rolling elements and enclosing construction, but with only low friction on the four open races.
Features- 4-point system - load capacity from all directions
- Rotational resistance freely adjustable - a preloaded system
- Compact design - minimal installation space
- Insensitive to environmental influences, shock and impact elastic
Specifications
Brand
Material
- Inner/Outer Ring: AIZnMgCu05
- Ball Race Rings: 54SiCr6
- Rolling Elements: 100Cr6
- Cage: PA12
- Seal: NBR
Gear
- AT10
Temperature in Use
- -20° to +80° C, Briefly up to +100° C
Circumferential Speed
- Maximum 5 m/s, without Seals Maximum 10 m/s
Screw Connection
- See Technical Information
Lubricant Grease
- Shell Gadus S3 V220C2
Re - Lubrication
- Using Grease Nipples According to DIN 3405
