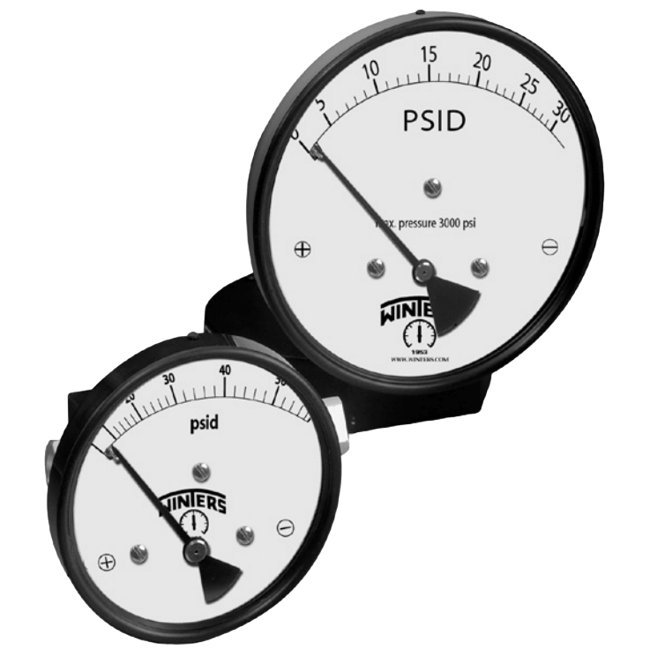

PSD Small Convoluted Diaphragm Gauge
Brand: Winters Instruments
Features
- Versatile high static low differential pressure gauge
- Switches available for actuation
- ASME B40.100 compliant
- IP65 enclosure rating
- 5 year warranty
Specifications
Brand
Accuracy
- ± 2 % of Full Scale Value
Adapter
- 1/2" NPT Female Stainless Steel Adapter
Ambient Temperature Range
- -40° to 93° C (-40° to 200° F)
Approvals & Certifications
- CRN - Canadian Registration Number
Bushing Material
- Teflon Guide
Diaphragm Material
- Buna-N
Differential Pressure
- psid: 0 to 100 (kPa: 0 to 700, bar: 0 to 7)
Electrical Contacts
- Normally Open
Electrical Rating
- 0.25 A at 125 Vac/dc, 3 W
- 0.5 A at 230 Vac/dc, 25 W
Enclosure, Body Material
- Aluminum
- Brass
- Plastic
- Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
Fill Material
- Glycerin
Lens
- Acrylic Lens
- Safety Glass
Maximum System Pressure
- Aluminum, Stainless Steel (SST) psi: 3,000 (kPa: 20,000, bar: 200)
- Brass psi: 1,500 (kPa: 10,000, bar: 100)
Mounting
- 2" Pipe Mounting Kit
- Wall Mounting Kit
NACE & NIST
- NACE for Sour Gas Applications
Name Plate, Tag Material
- Stainless Steel with Stainless Steel (SST) Wire & Screw
NPT Connection
- 1/2" NPT Female
- 1/4" NPT Female
Pressure Range
- bar: 0 to 7
- kPa: 0 to 700
- psi: 0 to 100
Pressure Type
- Differential
SAE Connection
- 7/16"-20 SAE
Seat / Seal Material
- Seal: Buna-N
- Seal: Ethylene Propylene
- Seal: Neoprene
- Seal: Silicone
- Seal: Viton
Sensor, Probe Type
- Convoluted Diaphragm Sensor
Size
- Dial: 2-1/2" (63 mm)
- Dial: 3-1/2" (90 mm)
- Dial: 4-1/2" (115 mm)
Special Cleaning & Packaging
- Cleaned for Oxygen Service
Switch Type
- 1 or 2 Switches
- SPDT
Wetted Materials
- Stainless Steel (SST) with Buna-N Seal
- Filtration Systems
- Low Pressure Gas Systems
- Leak Detection
- Ideally Suited for Use on Dissimilar Fluids and Wet Gas or Fluids With High Concentration of Particles.
- Suitable for Use With a Diaphragm/Chemical Seal.
