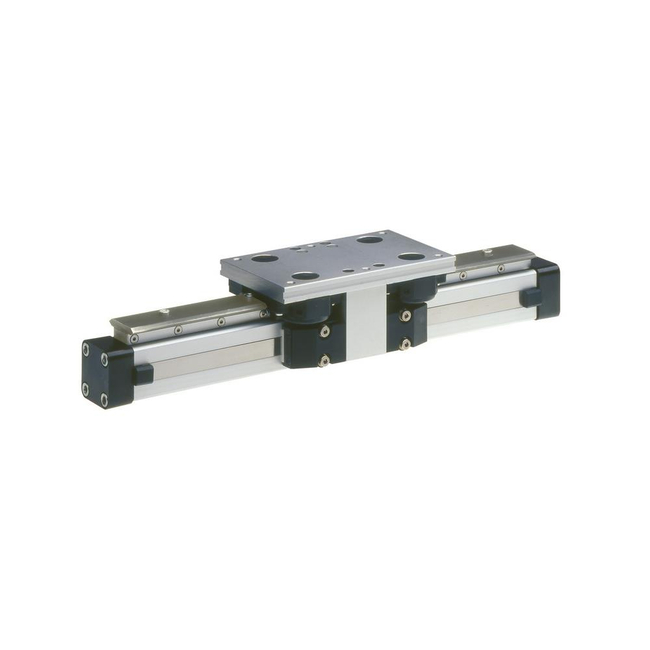

OSPE50-B Belt Driven, POWERSLIDE Roller Guide, Rodless Electric Linear Actuator

OSPE50-B Belt Driven, POWERSLIDE Roller Guide, Rodless Electric Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

With multiple guide, carriage and mounting options and an IP54 rating, along with a multitude of other customizable features the OSPE-B 50 is designed to be our most versatile yet cost-effective point to point positioner. Suitable for payloads up to 4000 N.

The POWERSLIDE roller guide option OSPE50-B belt driven electric linear actuator is designed and engineered to provide an extremely flexible product that can be configured to provide solutions for transfer handling operations within industrial, manufacturing and assembly environments.
Features
  • Belt driven actuator for dynamic motion and positioning with long travel
  • High acceleration and speed for reduced process times
  • Roller bearing for smooth travel in high demanding and harsh environments
  • Hardened steel guide rail with selective load capability
  • Integrated seal strip offering IP54 protection
  • Pre-configured motor and gearhead mounting kits for simplified installation
  • Dovetailed mounting rails allow simplified clamping of modular system components

Specifications

Brand

Additional Protection Option

  • Steel Strip Cover

Approvals & Certifications

  • Cleanroom Certified (Custom Option)

Bearing Type

  • Powerslide Roller Guide

Corrosion Resistant Option

  • No

Drive Type

  • Belt

Idler Unit Option

  • No

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 393

Maximum Acceleration (m/S2)

  • 10

Maximum Payload FZ (N)

  • 3000 - 4000

Maximum Speed (inch/sec)

  • 118

Maximum Speed (m/sec)

  • 3

Maximum Stroke (inch)

  • 137

Maximum Stroke (mm)

  • 3500

Maximum Thrust FX (Lbs)

  • 96

Maximum Thrust FX (N)

  • 425

Position Repeatability (± Inch)

  • 0.002

Position Repeatability (± mm)

  • 0.05

Profile Width (mm)

  • 87

Series

  • OSP-E

Typical Payload FZ (N)

  • 400 - 4000

  • Pick and Place Applications
  • Packaging, Labeling and Wrapping Systems
  • Pusher, Picker and Gripper Applications
  • Positioning
  • Feeding
  • Cutting
  • Markets
    • Factory Automation
    • Miscellaneous Industrial
    • Miscellaneous Manufacturing
    • Packaging Machinery
    • Printing and Marking Equipment
    • Vehicle Assembly Facilities
    • Coatings / Ink / Paint
