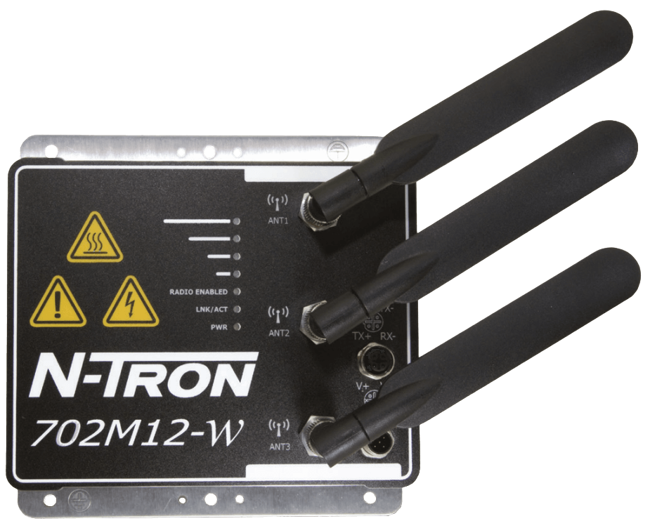

702M12-W Industrial Wireless Radio
Brand: Red Lion ControlsThe N-TRON 702M12-W Industrial Wireless Radio offers outstanding performance and ease of use.
It is ideally suited for connecting wireless devices to a wired network or for connecting two wired networks in an IP67 environment, where it is not possible, impractical, or too expensive to install cable.
For these situations, including related mobile applications, the wireless 702M12-W industrial radio is the perfect solution - a rugged, high performance network connection that can be quickly and easily deployed.
Features- Full IEEE 802.11a, b, g, n compliance
- IP67 Rated, industrial hardened enclosure
- One 10/100BaseTX M12 Port
- Three Antennas for 3x3 MIMO operations
- Four user definable LED's for display of signal quality
- Radio Enable, Link/Activity, and power LEDs
- Station roaming
- 802.3af PoE powered device
- Extended environmental specifications
- Autosensing 10/100BaseTX, Duplex, and MDIX
- Redundant power inputs (10-49 Vdc)
- Web browser management
1 - 12 of 208 Part Numbers
702M12-PK
- Product - Pole Mount Kit for 702M12-W Radio
702M12-W
- Product - IP67-Rated 1-Port (10/100BaseTX w/ M12 D-Coded Female Connectors) Industrial Wireless Radio with Three MIMO Antennas, Bulkhead Mountable
ANT-CAB-400-N-1
- Product - 1 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-10
- Product - 10 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-11
- Product - 11 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-12
- Product - 12 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-13
- Product - 13 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-14
- Product - 14 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-15
- Product - 15 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-16
- Product - 16 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-17
- Product - 17 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
ANT-CAB-400-N-18
- Product - 18 Low Loss CA-400 Coaxial Cable with (2) N-Male Connectors for Use with ANT-LA6-NFF Lightning Arrestor, Cable Length in Feet
1 - 12 of 208 Part Numbers
Specifications
Brand
Approvals & Certifications
- EN 301 489-3, 301 489-1, 50155, 50121, 61373 (Rail)
Approvals & Certifications
- CE
- EMC
- EMI
- FCC
- GOST-R
- IEC 61000-4-2, 3
- IEEE 802.11a, 802.11b, 802.11 G, 802.11n, 1613 (Elecric Utility Substations)
- RoHS
- UL 508
Electrical Connectors
- 10/100Base-TX: One (1) M12 Copper Port PoE-Powered Device Support
- 802.11a/b/g/n: (3) RP-TNC Connector
Environmental Protection
- IP67
- NEMA TS1
- NEMA TS2
Humidity
- 5 to 95 % Relative Humidity, Non-Condensing
Indication
- LED
Input
- 10-49 Vdc (Regulated)
- 200 mA at 24 Vdc, Max.
- Input Ripple: < 100 mV
Mounting
- DIN Rail Mounting
- Pole Mounting Kit
Operating Temperature
- -40° to 80° C (-40° to 176° F)
Power
- 4.8 W, Max.
Power Supply
- N-Tron: 1.3 A at 24 Vdc
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Wiring
- Wiring Clearance Front, Side: 4” (10.2 cm)
- Wiring Clearance Top: 6” (15.3 cm)
