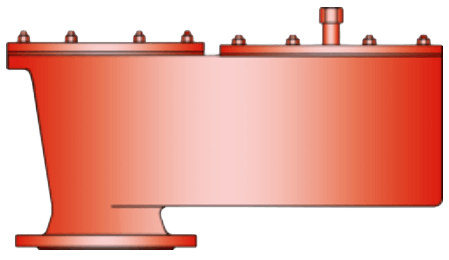

Protego Vacuum Relief Valve, V/SV

V/SV Vacuum Relief Valve

Brand: PROTEGO
Add Product to My Catalog

The V/SV type Protego valve is a highly developed vacuum relief valve with excellent flow performance.

It is primarily used as a safety device for relieving vacuum in tanks, containers and process engineering equipment.

The valve offers reliable protection against vacuum, and prevents inbreathing of air close to the set pressure.

The device will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift.

Continuous investments into research and development have allowed Protego to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve.

This "full lift type" technology allows the valve to be set just 10% below the maximum allowable working pressure of the tank and still safely vent the required mass flow.
Features
  • "Full lift type" technology valve utilizes only 10% overpressure to reach full lift
  • Extreme tightness and hence least possible product losses and reduced environmental pollution
  • The set pressure is close to the opening pressure which results in best possible pressure management of the system
  • Very high flow capacity
  • The valve pallet is guided within the housing to protect against harsh weather conditions
  • Can be used in areas subject to explosion hazards
  • Self draining
  • Maintenance friendly design
  • Best technology for API-tanks

1 - 2 of 2 Part Numbers
V/SV
V/SV
  • Model - Pressure/Vacuum Valve in Basic Design
V/SV-H
V/SV-H
  • Model - Pressure/Vacuum Relief Valve with Heating Jacket
1 - 2 of 2 Part Numbers

View_Details

Specifications

Brand

Approvals & Certifications

  • ISO 6358, ISO 16016
  • TÜV (Technischer Uberwachungsverein)

Cover Material

  • Aluminum
  • Stainless Steel
  • Steel

Diaphragm Material

  • FEP

Enclosure Finish

  • ECTFE

Enclosure, Body Material

  • Aluminum
  • Stainless Steel
  • Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ASME B16.5

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150# ASME B16.5

Flange Size - 12” (DN 300)

  • 12” (DN 300) - 150# ASME B16.5

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ASME B16.5

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ASME B16.5

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ASME B16.5

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ASME B16.5

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ASME B16.5

Flange Type

  • Raised Face (RF)
  • Smooth Finish

Materials of Construction

  • Heating Jacket, Valve Pallet: Stainless Steel
  • Heating Jacket: Steel
  • Valve Pallet: Aluminum

Pressure Range

  • psi: -0.870 to -0.029 (kPa: -6 to -0.2, Mbar: -60 to -2) Vaccum

Seat / Seal Material

  • Seal: FEP
  • Seal: Metal
  • Seal: PTFE
  • Valve Seat: Stainless Steel
