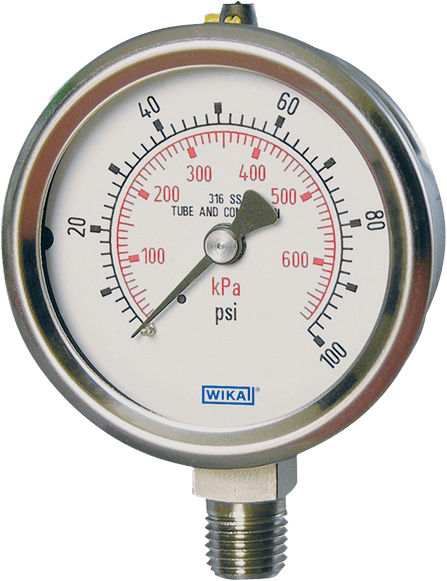

Bourdon Tube Pressure Gauges Stainless Steel - 232.53, 233.53
Brand: WIKA Alexander Wiegand SE & Co. KGBourdon tube pressure gauges for dry case or liquid-filled case.
Features- Excellent load-cycle stability and shock resistance
- All stainless steel construction
- Positive pressure ranges to 15,000 psi (1,000 bar)
- FlexWindowTM option with integrated pressure compensation and 100% case fill
Specifications
Design
- ASME B40.100 & EN 837-1
Sizes
- 2"
- 2-1/2"
- 4"
Accuracy Class
- 2" & 2-1/2": ± 2/1/2 % of Span
- 4": ± 1.0 % of Span
Ranges
- Vacuum or compound: up to 200 psi
- Pressure: 15 psi to 15,000 psi
Operating Temperature
- Dry: -40° to +140° F
- Glycerine filled: -4° to +140° F
- Silicone filled: -40° to +140° F
Material
- 316 Stainless Steel
Connection Sizes
- 1/8" NPT
- 1/4" NPT
- 1/2" NPT
Approvals
- NGV 3.1 Approval
- Process Industry
- Corrosive Environments
- Gaseous or Liquid Media
- High Dynamic Pressure Pulsations
