Additive/Dye Dispenser-Mounted Injection System (DMIS)
Brand: BlendtechThe Blendtech ECM Dispenser-Mounted Injection System (DMIS) is a self-contained injection solution for additive and dye injection within a fuel dispenser.
Once installed, the injection system operates completely unattended as a slave to the dispenser's main product stream.

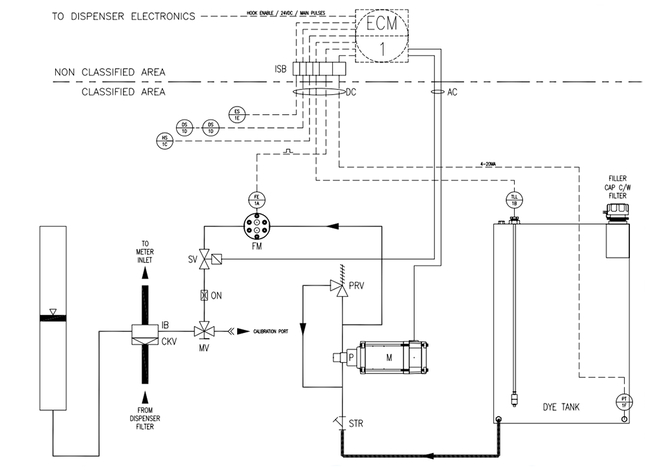

Key components of the system include an ECM, interface to a TAS system, additive tank and level sensor, integrated additive pump, optical colour verification system, additive flow meter and optional transaction printer.
All components of the system are housed in a UL certified dispensing unit with no additional hardware mounted to the exterior.
With the components mentioned above and Blendtech’s advanced additive injector technology, the DMIS is the ultimate injection solution for additive injection or verification.
Features- Additive Pretreatment
- • Clean starts - no contamination
- • Additive and Product totals
- • Supports a variety of flow meters
- • Accepts flow meter pulse rates up to 15kHz.
- • Error checking and alarm generation
- • Provides for calibration of each flow meter pulser
- • Additive Overtreat
- Flushing at end of load (Preset Mode Only)
- • Designed to eliminate cross contamination
- • 20 character, 2 line vacuum fluorescent graphic display
- Integrated easy to use HMI
- RS-485 and RS-232 data communications and control
- Available Report Printer
- FLEx iO user defined inputs and outputs
- 8V - 36V DC operation
- Nonvolatile memory and Transaction Log
- Flash Based Software
- B l e n d C O M M M a n a g e m e n t a n d C o n t r o l Compatible
- MODBUS ASCII Protocol available
- Dresser/Wayne WIP Protocol supported.
- Integrated Additive Inventory System
- Spectrum™ Colour Verification System
- “Out of Sight, Out of Mind” Design with unique “Invisible” Tank design.
- Canadian Weights and Measures Approved when installed in approved dispenser.
Specifications
Brand
Electrical Power Supply
- 8V to 36V DC, 150 Watts (complete system)
Digital Inputs
- 7 FLEx iO DC Inputs
- 2 High Speed FLEx iO Inputs with a
- 15kHz. Maximum count rate
- Type: Dry contact closure (TTL compatible) Max. Open circuit voltage 36V Max. Short circuit current 1 mA
Digital Outputs
- 6 High Speed FLEx iO Digital Outputs
- Type: 5 - High Side Switch, Short Circuit and Load Protected. Thermally Protected. Maximum load 36V DC, 5Amps. 1 -Solid State Relay Output. Maximum Load 60V DC, 2Amps.
Motor Control
- Brushless DC motor controller or Class I, Division 1 hazardous motor available.
Colour Sensor
- BLENDTECH Spectrum™ Colour Verification System - In line configuration. (optional)
Communications
- 2 - Serial Communication Ports, RS-485 RS-232 selectable with lightning / surge protection
- Baud Rate: Selectable 1200 to 19200
- MODBUS ACSII System
- Report Printer Supported.
- Dresser/Wayne WIP Protocol Support.
- CANBUS Available
Event Log
- Up to 200 entries or transactions
Display
- 20-character, 2-line graphic VFD
Environment
- Unit suitable for indoor or outdoor use with appropriate enclosure mounted in a fuel dispenser.
Safety
- All solid state design
- No open electrical contacts
- Brushless DC or Class I Division 1 Motor
Hazardous Areas (optional)
- System UL and CSA Approved for Class I, Group D, Division 1 Hazardous Areas with enclosure shown.
Flowmeter
- 303 stainless steel body
- 440 stainless steel gears
Pump
- 304 stainless steel body. Teflon seals
Process Piping and Valve
- 304 stainless steel
Additive Tank (Storage)
- Galvanneal Steel
