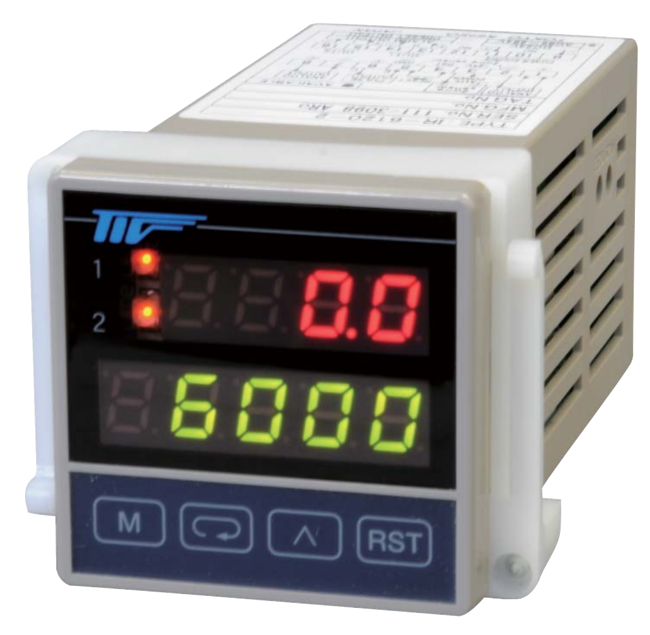

IR-6000 Mini Universal Totalizer

Brand: Tokyo Keiso Co, Ltd

IR-6000 is a panel mount Indicator / Totalizer which is used in combination with flowmeters having 4 to 20 mA DC or pulse output for flow rate.  R-6000 has simultaneous indication of flow rate and totalization of flow, and also has a function of 2 points flow rate alarm monitoring. Moreover, IR-61□□ has a function of square root, and the pressure signal from difference pressure transmitters can also be handled. Scaling, alarm setting and other operation parameter setting can be conducted through front panel key operation.  IR-6000 has an integrated 24 Vdc loop power supply to eliminate the necessity of external power supply unit. IR-6000 saves panel space by its DIN 48 x 48 compact housing and also eliminates troublesome wiring.

Specifications

Ambient Temperature Range

  • 0° to 50° C (32° to 120° F)

Enclosure, Body Material

  • ABS Resin

Environmental Protection

  • IP20

Humidity

  • 30 to 80 % Relative Humidity

Input Signal

  • 0-5 Vdc
  • 1-5 Vdc
  • 4-20 mA DC

Power Supply

  • 24 Vdc ± 15 %, Sensor Loop: 24 Vdc / 30 mA - Max.
  • 85-264 Vac 50/60 Hz
