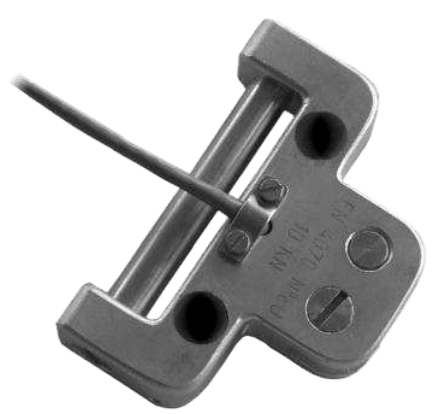

FN4070/FN4080 Automotive Load Cell

Brand: American Sensor Technologies Inc

The FN4070 load cell measures the effort generated on the anchor point of seat belts during crash tests. It has been specifically designed with a replaceable tongue.

The load cell can be easily re-used by changing the tongue. It also has a cable output which can be renewed by the crash test technicians to allow for cost-effective, inhouse maintenance of the device. For lower operating ranges 250 N refer to model FN4080.
Features
  • Multiple tongues adjustable by customer
  • Dynamic application
  • Very robust for crash
  • Easy cable replacement for customer

1 - 12 of 490 Part Numbers
FN4070-10KN-/L10M
FN4070-10KN-/L10M
  • Range - 10K N
  • Cable Length - 10 Custom Cable Length in metres
FN4070-10KN-/L11M
FN4070-10KN-/L11M
  • Range - 10K N
  • Cable Length - 11 Custom Cable Length in metres
FN4070-10KN-/L12M
FN4070-10KN-/L12M
  • Range - 10K N
  • Cable Length - 12 Custom Cable Length in metres
FN4070-10KN-/L13M
FN4070-10KN-/L13M
  • Range - 10K N
  • Cable Length - 13 Custom Cable Length in metres
FN4070-10KN-/L14M
FN4070-10KN-/L14M
  • Range - 10K N
  • Cable Length - 14 Custom Cable Length in metres
FN4070-10KN-/L15M
FN4070-10KN-/L15M
  • Range - 10K N
  • Cable Length - 15 Custom Cable Length in metres
FN4070-10KN-/L16M
FN4070-10KN-/L16M
  • Range - 10K N
  • Cable Length - 16 Custom Cable Length in metres
FN4070-10KN-/L17M
FN4070-10KN-/L17M
  • Range - 10K N
  • Cable Length - 17 Custom Cable Length in metres
FN4070-10KN-/L18M
FN4070-10KN-/L18M
  • Range - 10K N
  • Cable Length - 18 Custom Cable Length in metres
FN4070-10KN-/L19M
FN4070-10KN-/L19M
  • Range - 10K N
  • Cable Length - 19 Custom Cable Length in metres
FN4070-10KN-/L20M
FN4070-10KN-/L20M
  • Range - 10K N
  • Cable Length - 20 Custom Cable Length in metres
FN4070-10KN-/L21M
FN4070-10KN-/L21M
  • Range - 10K N
  • Cable Length - 21 Custom Cable Length in metres
1 - 12 of 490 Part Numbers

Specifications

Accuracy

  • < ± 0.5 % of Full Scale - Combined Non-Linearity & Hysteresis

Applications

  • Crash Test on Board Equipment
  • Parachute Belt & Anchor Testing
  • Security Absorbers

Approvals & Certifications

  • CE
  • EN 50081-1
  • EN 50082-1
  • EN 61010-1

Cable Length

  • 6.56 feet (2 metres)

Compensated Temperature

  • 0° to 60° C (32° to 140° F)

Electrical Connectors

  • 28 AWG Shielded Cable with 4-Wires
  • 36 AWG Shielded Cable with 4-Wires

Enclosure, Body Material

  • Aluminum Alloy
  • Stainless Steel

Environmental Protection

  • IP50

Insulation Resistance

  • ≥ 100 megaohms

Operating Temperature

  • -20° to 80° C (-4° to 176° F)

Output

  • 20 mV - Full Scale

Sensitivity

  • < 1 % of Reading / 50° C (100° F) - Sensitivity Shift in Compensated Temperature Range

Supply Voltage

  • 10 Vdc

Version / Leadwires

  • 4-Wire

Zero Balance

  • < 0.5 % of Full Scale/50° C (100° F) - Zero Shift in Compensated Temperature Range

Zero Offset

  • < ± 1 mV

  • Crash Test On-board Equipment
  • Security Absorbers
  • Parachute Belt and Anchor Testing
