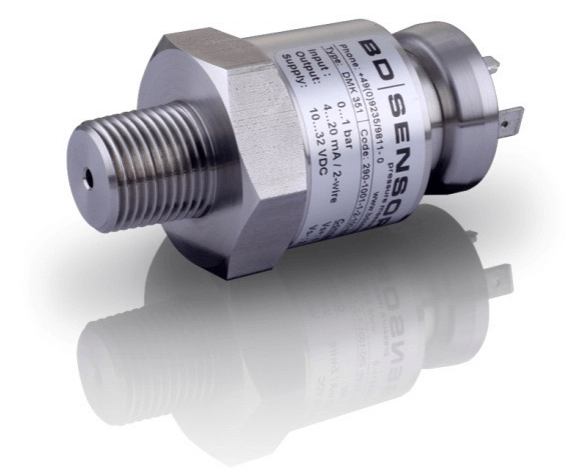

DMK 351 Pressure Transmitter
Brand: BD SensorsThe pressure transmitter DMK 351 has been specially designed for applications in plant and machine engineering as well as laboratory techniques and is suitable for measuring small system pressure and filling heights.
By using our own-developed capacitive sensor, optionally available as AI₂O₃ 99.9%, the DMK 351 offers a high overpressure resistance and a high temperature and media resistance.
The pressure transmitter is available in an intrinsically safe version for a use in explosive environments.
Features- Nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar
- Accuracy: 0.35 % (opt. 0.25 %) FSO
- High media resistance
Specifications
Brand
Approvals & Certifications
- ATEX: IBExU05-ATEX-1070 X, 2014/34/EU
- CE-Conformity
- EMC: Emission & Immunity According to EN 61326 & 2014/30/EU
- REACH
- RoHS
- TÜV
- UL (C,US)
Diaphragm Material
- Ceramic
Enclosure, Body Material
- 316L Stainless Steel
- Polypropylene
- PVDF
Environmental Protection
- IP65
- IP67
- IP68
Output
- 0-10 V
- 4-20 mA
Pressure Range
- bar: 0.03 to 19.61
- kPa: 3.92 to 1,961
- meter WC 0.4 to 200
- psi: 0.56 to 284.5
- Mechanical And Plant Engineering
- Energy Industry
- HVAC
- Laboratory
- Environmental Industry
- Packaging And Paper Industry
