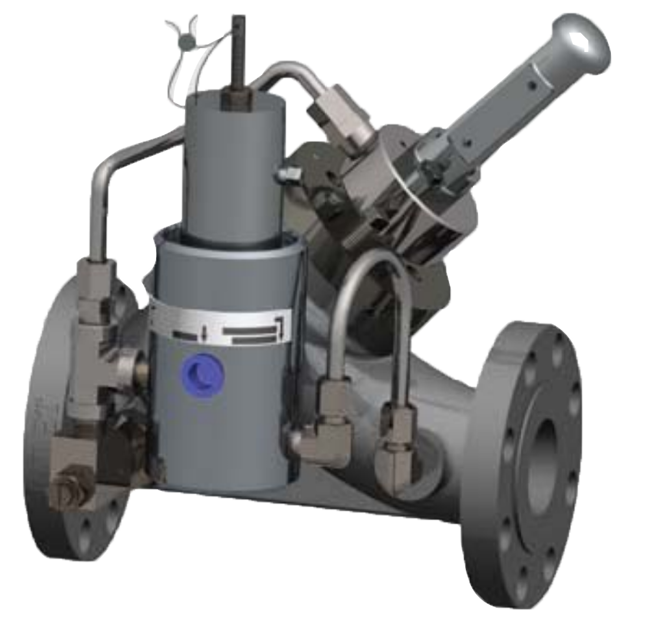

Model BV50 Pressure Reducing Valve

Brand: Brodie International

The Model BV50 Brodie Control Valve is a pressure reducing valve designed to regulate a downstream pressure regardless of fluctuations in flow rate or downstream pressure.

When correctly installed and adjusted, the Model BV50 valve will regulate downstream pressure at a value within +/-2 psi (13.8 kPa) of the valve pilot’s setting.
Features
  • Modular construction - all internal parts including seat ring can be removed with the cylinder assembly without disturbing line connections
  • No diaphragms or stuffing boxes
  • 45° body design assures high capacity
  • Positive shut-off
  • Uniform speed of response
  • Linear control characteristics
  • Inherently checks reverse flow

Specifications

Enclosure, Body Material

  • Carbon Steel (ASTM -A216-GR-WCB)

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI
  • 2” (DN 50) - 300# ANSI

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ANSI
  • 3” (DN 80) - 300# ANSI
  • 3” (DN 80) - PN 25
  • 3” (DN 80) - PN 64

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ANSI
  • 4” (DN 100) - 300# ANSI
  • 4” (DN 100) - PN 25
  • 4” (DN 100) - PN 64

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ANSI
  • 6” (DN 150) - 300# ANSI
  • 6” (DN 150) - PN 25
  • 6” (DN 150) - PN 64

Materials of Construction

  • Main Valve Cylinder: 630 (17-4) Stainless Steel
  • Main Valve Piston: Stainless Steel

Seat / Seal Material

  • O-Ring: Viton Standard
  • Seat Ring: Stainless Steel
