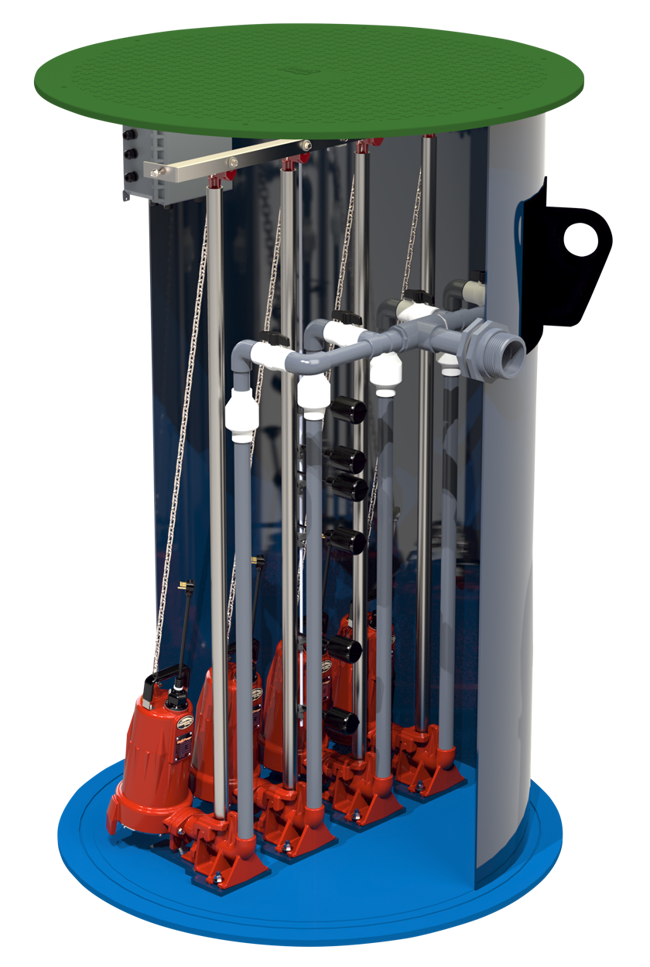

Q48120-Series 48" x 120" Quadplex Grinder Package
Brand: Liberty PumpsFactory Assembled 2 hp Grinder Pumps 48" Diameter System.
Pre-designed QE-Series quadplex systems ship quick (2 days typical). These 48” diameter tanks are available with multiple depth options. Redundant operation provides better backup option.
System is easily modified to run two pumps at a time for variable flows. Cost effective option compared to 2 larger 5 hp grinders.
BIM models and engineering specifications are available for these systems.
Features- Redundancy with four 2 hp Omnivore® Grinder pumps
- Higher flow rates up to 200 gpm
- Comparable flow rates to higher horsepower grinder systems
- Easier to service and only 25% flow loss while pump is being serviced
- 6" Inlet hub with rubber pipe seal
- Factory pre-assembled guide rail system
- Galvanized guide rail piping (stainless optional)
- Factory pre-assembled Schedule 80 PVC discharge piping with integral check valves and ball valves
- Fiberglass basin with anti-flotation collar
- Solid green fiberglass cover standard
- Pre-mounted stainless-steel supports and brackets
- Pre-mounted NEMA 4X junction box for electrical connections
- Stainless-steel chain for pump lift-out
Specifications
Brand
Discharge Size
- 3"
Cable Length
- 25 ft
Basin Dimensions
- 48" x 120"
Basin Capacity
- 940 gal
Discharge Depth
- 24", 36", 48", 60" (From Top of Basin)
Grinder Pump
- 2 hp
Cover Material
- Solid Green Fiberglass
Material of Construction
- Chain for Pump Lift-Out: Stainless Steel
- Basin: Fiberglass
- Discharge Piping: PVC
- Pipe Seal: Rubber
Volume Per Pump Cycle
- 235 gal
Alarm Level
- 61" (155 cm)
On Level
- 43" (109 cm)
Off Level
- 13" (33 cm)
Certifications & Approvals
- cCSAus
- SSPMA
Environmental Protection
- Junction Box: NEMA 4X
