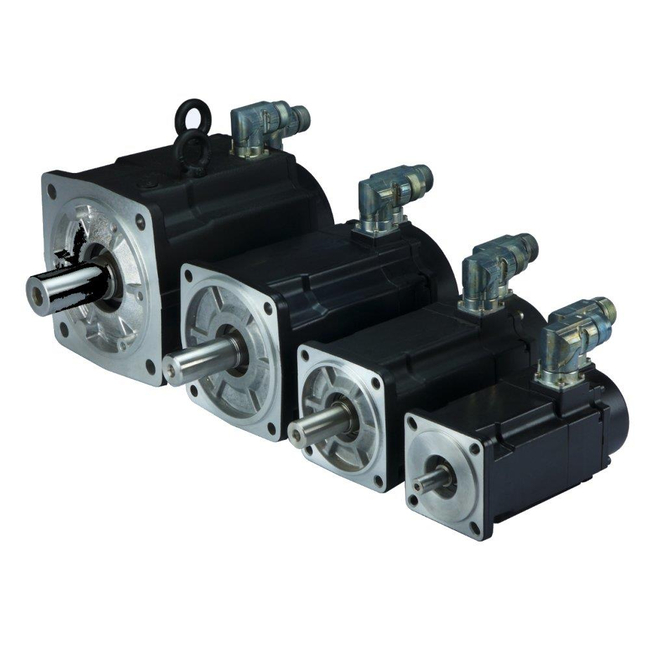

EY-Series Explosion Proof (ATEX Zone 2) Brushless Servo Motors

EY-Series Explosion-Proof (ATEX Zone 2) Brushless Servo Motors

Brand: Parker Hannifin
Add Product to My Catalog

Available in 70-155 mm frame sizes, EY explosion-proof servo motors are suitable for use in explosive atmospheres in Zone 2 and for an ambiant temperature at 40°c or 60°C.

Conforms with European (CE) regulation and international safety standards (IECEx).

Specifications

Brand

Approvals & Certifications

  • CE MarkedUL, cUL Listed/ATEX 'Ex' Safety Rated (Zone 2)

Continuous Torque (In/Lbs)

  • 17.7 - 363

Continuous Torque (Nm)

  • 2.0 - 41

Cooling Method

  • Air-Cooled / Natural Convection

Frame Size

  • 70 mm, 92 mm, 121 mm, 155 mm

Holding Brake

  • Optional

Input Supply Voltage

  • 230 Vac 400-480 Vac

IP Protection Rating

  • IP65

Parker Drive Compatibility

  • PSD1Compax3SLVD-NAC30AC890

Peak Torque (In/Lbs)

  • 58 - 1213

Peak Torque (Nm)

  • 6.6 - 137

Product Style

  • Rotary/Synchronous

Product Type

  • Brushless Servo Motor

Rated Speed (rpm)

  • 0 to 6800

Series

  • EY

Shaft Type

  • SmoothKeyway

Documentation

Data Sheets

Product Manuals

Catalogs

Certifications & Approvals

Outline Drawings
