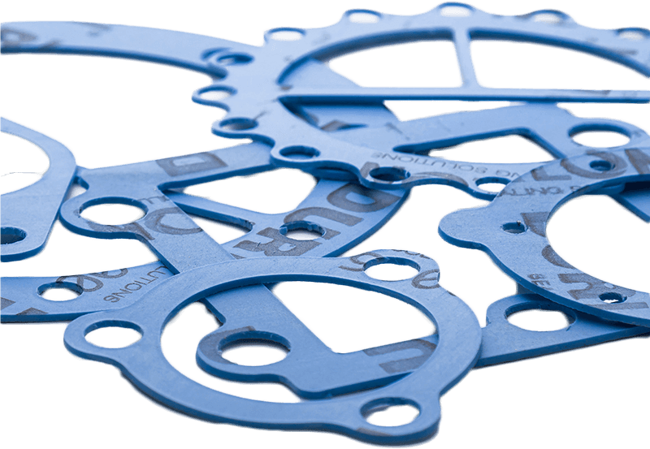

Durlon 9000 PTFE Sheet Gaskets
Brand: Durlon® Sealing Solutions
A premium grade material for service conditions to 496°C / 925°F and continuous operating temperatures of -73°C to 400°C / -100°F to 752°F.
Durlon® 8900 is ideal for saturated and superheated steam, oil, dilute acids and alkalis, hydrocarbons and solvents.
Specifications
Gasket Factors
- 1/16”
- 1/8”
Gasket Factors (m)
- 2.2
- 4.6
Gasket Factors (Y psi (MPa))
- 1,937 psi / 13.4 MPa
- 1,639 psi / 11.3 MPa
Gasket Factors (Gb)
- 639 psi / 4.4 MPa
- 495 psi / 3.4 MPa
Gasket Factors (a)
- 0.220
- 0.262
Gasket Factors (Gs)
- 55 psi / 0.379 MPa
- 65 psi / 0.448 MPa
Certifications
- Passed API 6FA, 3rd Edition Fire Test
- WRAS Approved Material
- USP for Plastic Class VI: Met requirements - 121° C (250° F)
- FDA: Conforms to the requirements of 21 CFR 177.2600
- TA-luft (VDI Guideline 2440) Approved Material
- ABS-PDA & Pamphlet 95 Approved Material, chlorine ins., DNV-GL
- (EC) 1935/2004 & EU (10/2011) Approved Material
Color
- Blue
Filler System
- Inorganic
Minimum Temperature
- -212° C / -350° F
Maximum Temperature
- 271° C / 520° F
Continuous, Maximum Temperature
- 260° C / 500° F
Maximum Pressure
- 103 bar / 1,500 psi
Density
- 2.2 g/cc - 138 lbs/ft³
Compressibility
- 8-16 %
Recovery
- 40
Creep Relaxation
- 30%
Tensile Strength
- 13.8 Mpa / 2,000 psi
Nitrogen Sealability, ASTM 2378
- 0.01 cc/min
Leakage
- 7.55 x 10*6
Volume Resistivity, ASTM D257
- 1.0 ohm x 10*5 cm
Dielectric Breakdown ASTM D14
- 16 kV/mm - 406 V/mil
- Chemical Processing
- Food & Beverage
- Mining
- Water & Wastewater
- General Industry
- OEM Services
- Petrochemical
- Refining
- Oil & Gas
