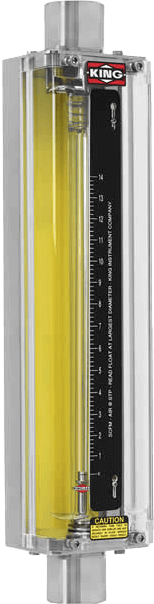

Silver Series - Glass Tube Flowmeter
Brand: King Instrument Company35 flow ranges in 6 tube sizes with full horizontal and vertical connection options make these flowmeters the most versatile removable glass tube meters available.
The powder-coated 304 stainless steel case and precision molded polycarbonate shield will tolerate most corrosive applications.
Specifications
Brand
Metering Tube
- Borosilicate Kinglass
Internal Components
- Standard: 316L Stainless Steel
- Optional: Hastelloy C-276
Capacities
- Water 0.23 to 85 GPM
- Air 1.15 to 285 scfm
Accuracy
- ± 2 % of Full Scale flow
Turndown
- 10:1
Repeatability
- 0.5%
Maximum Temperature
- 200° F
- 93° C
Ambient Temperature
- 33° F to 125° F
- 1° C to 52° C
Cover
- Molded polycarbonate shield
Case
- Powder-coated 304 SS
Maximum Pressure
- 316L SS fittings: 300 psig, size 3 & 4
- 316L SS fittings: 250 psig, size 5 & 6
- 316L SS fittings: 75 psig, size 8 & 9
- PVDF fittings: 150 psig, size 3 & 4
- PVDF fittings: 150 psig, size 5 & 6
- PVDF fittings: 75 psig, size 8 & 9
Options
- Alarm: Latching Reed Switch
- Valve: External valve - 316L SS for size 3 to size 6 FNPT only
- Certified Calibrations: Conform to ISA RP 16.6
- Scales: Any volumetric unit.
