Ground MILLHOG
Brand: Esco Tool
The Ground MILLHOG is a right angle, I.D. clamping beveling machine that is only 1.5in (38.1mm) wide and fits between boiler water wall tubes for beveling a single tube and other boiler tube applications with restricted access.
The Ground MILLHOG is made of high quality treated materials for durability. Proprietary bearings support heavy duty gears for smooth operation on the toughest applications.
Patented push-pull clamp and release system with permanently attached wrenches eliminate the possibility of loose parts separating from the tool.
This high performance machine utilizes the EscoLock wedge style blade lock system and TiN coated blades for chatter-free beveling.
Features- Narrow body 1.5" (38.1mm) wide for beveling a single tube in a water wall

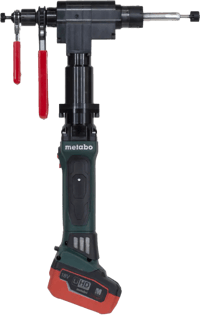

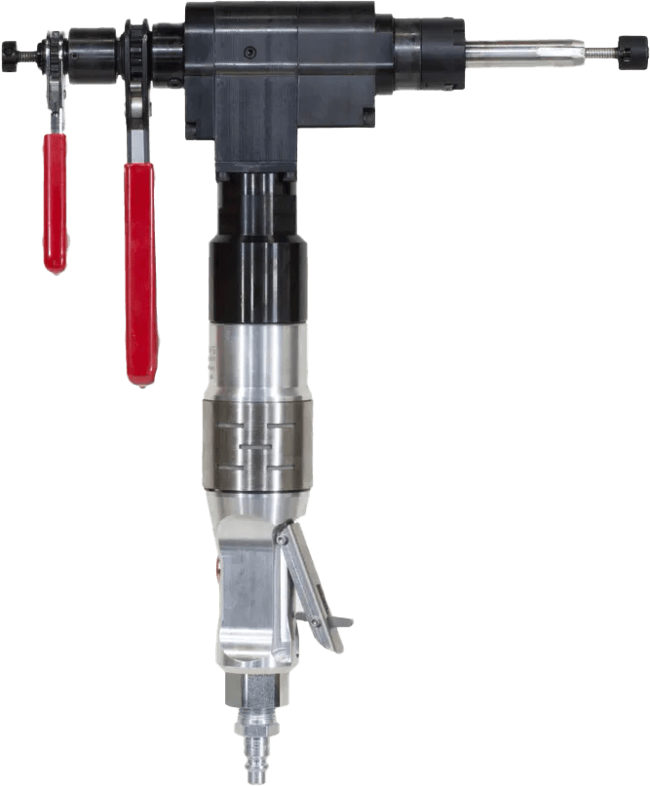

- Three interchangeable motor choices, pneumatic, electric and battery
- Rugged steel housing for lasting durability
- Patented clamp system, allows the clamps to release from a tube as easily as they tighten
- Permanently attached wrenches keep the operating essentials at the operator's finger tips
- Dual-opposed tapered roller bearings support the gear drive
- Proprietary EscoLock blade holding system minimizes vibration and maximizes tube and pipe bevels per blade
Specifications
Brand
Working Range
- 0.5” I.D. - 2.25” O.D. (12.7 mm I.D. - 57.15 mm O.D.)
Blade Series
- G-Series Blades
Width
- 1.5” (38.1 mm)
Width (M/O Heads)
- 1.875” (47.6 mm)
Length
- 14” (355.6 mm)
Motor
- Pneumatic
- Electric
- Battery
Cutterhead Speed
- 125 rpm
- 12-63 rpm
- 49 rpm
Working Weight
- 12.7 - 14.6 lbs
Shipping Weight
- 40 - 46 lbs (5.8 - 6.6 kg)
Shipping Dimensions
- 20” x 18” x 5” (508 mm x 457 mm x 127 mm)
- 24” x 20” x 6” (610 mm x 508 mm x 152 mm)
