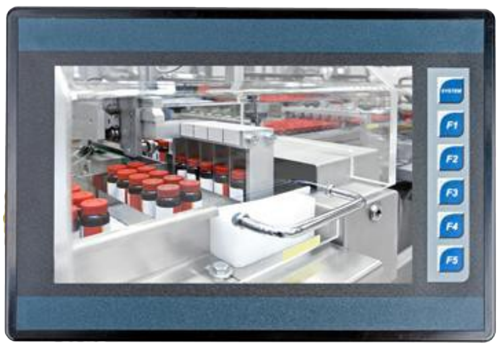

XL7 OCS Controller

Brand: Horner

HE-Logic engine features 1MB of application memory with a 0.013mS/K logic scan.

Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported.
Features
  • 800×480 LCD TFT color graphics display with a high resolution resistive touchscreen
  • 5 function keys and a system key
  • USB 2.0 On-the-Go port (mini-B 5pin) is available for programming
  • USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives
  • (2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols
  • (2) integrated CAN ports that support CsCAN and either CANopen, J1939 or DeviceNet Scanner simultaneously
  • (2) built-in 10/100 Ethernet ports

1 - 6 of 6 Part Numbers
HE-XW1E0
HE-XW1E0
  • Model - HE-XW1E0: No Built-In I/O
HE-XW1E2
HE-XW1E2
  • Model - HE-XW1E2: 12 DC In, 6 Relay Out, 4 12-Bit Analog In
HE-XW1E3
HE-XW1E3
  • Model - HE-XW1E3: 12 DC In, 12 DC Out, 2 12-Bit Analog In
HE-XW1E4
HE-XW1E4
  • Model - HE-XC1E4: 24 DC In, 16 DC Out, 2 12-Bit Analog In
HE-XW1E5
HE-XW1E5
  • Model - HE-XC1E5: 12 DC In, 12 DC Out, 2 14/16-Bit Analog In ( mA/V/Tc/mV/RTD), 2 12-Bit Analog Out
HE-XW1E6
HE-XW1E6
  • Model - HE-XW1E6: 12 DC In, 12 DC Out, 6 14/17-Bit Analog In ( mA/V/Tc/mV/RTD), 4 12-Bit Analog Out
1 - 6 of 6 Part Numbers

Specifications

Brand

Accuracy

  • ± 0.15 % of Full Scale
  • ± 0.2 % of Full Scale ± 3° C (5.4° F)
  • ± 0.2 % of Full Scale ± 1° C (± 2° F)
  • ± 20 ppm, Max.

Approvals & Certifications

  • CE
  • UL

Communication

  • Ethernet
  • Micro SD Card Slot
  • RS-232, RS-485
  • SmartBlock I/O
  • SmartRail I/O
  • SmartStack I/O
  • SmartStix I/O
  • USB

Display

  • 50,000 Hours
  • 7” TFT Color Screen

Humidity

  • 5 to 95 % - Non-Condensing

Input

  • 0-10 Vdc
  • 0-20 mA DC
  • 0-60 mV
  • 4-20 mA DC

Input Impedance

  • 10 kiloohms
  • mA: 15 ohms + 1.5 V
  • T/C / RTD / mV: > 2 megaohms
  • V: 1.1 megaohms

Input Power

  • Output Supply Voltage: 10-30 Vdc

Load Resistance

  • Minimum Current Load: 500 ohms

Maximum Voltage

  • Absolute, Max.

Operating Temperature

  • -10° to 60° C (14° to 140° F)
  • -40° to 60° C (-40° to 140° F) with Heater Add-On

Output

  • 0-10 Vdc
  • 0-20 mA DC
  • 4-20 mA DC

Power

  • 10-24 Vdc (Heater)
  • 10-30 Vdc

Power Requirement

  • 170 mA at 24 Vdc - Steady State
  • 7 A at 24 Vdc for < 1 millisecond
  • Up to 740 mA at 24 Vdc

Remote Control & Monitoring Software

  • Monitor Operating Status

Resolution

  • 12-bits
  • 14 to 17-bits
  • Display Resolution: 800 x 480

Response Time

  • 1 millisecond DC Input Response Time
  • 150 Nanoseconds DC Output Response Time

RTD Type

  • Pt100
  • Pt1000

Sensor, Probe Type

  • Thermocouple J, K, T, E, N, R, S, B

Storage Temperature

  • -40° to 60° C (-40° to 140° F)

Voltage Drop

  • Maximum
