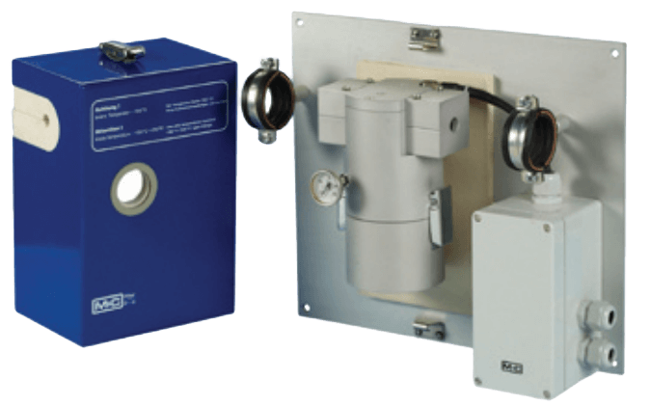

FT Electrically Heated Universal Filter

Brand: M&C TechGroup Germany GmbH

The M&C electrically heated universal filter reliably separates off solids, in particular extremely fine particles, occurring in analysis techniques in gas filtration, using very fine, deep-acting filter elements.

It is constructed especially for hot gas analysis technique at 180 °C.
Features
  • Electrically heated, maximum 180°C (356°F)
  • Consequent connection technique
  • No cold spots
  • Incorporated thermostat
  • Status alarm
  • Easy maintenance

1 - 6 of 6 Part Numbers
01 F 3006
01 F 3006
  • Version - FT-3G-H2
  • Power Supply - 230/240 V 50 Hz, 350 VA
01 F 3006-A
01 F 3006-A
  • Version - FT-3G-H2
  • Power Supply - 115 V 60 Hz
01 F 3007
01 F 3007
  • Version - FT-0,1GF-H2
  • Power Supply - 230/240 V 50 Hz, 350 VA
01 F 3007-A
01 F 3007-A
  • Version - FT-0,1GF-H2
  • Power Supply - 115 V 60 Hz
01 F 3008
01 F 3008
  • Version - FT-3SS-H2
  • Power Supply - 230/240 V 50 Hz, 350 VA
01 F 3008-A
01 F 3008-A
  • Version - FT-3SS-H2
  • Power Supply - 115 V 60 Hz
1 - 6 of 6 Part Numbers

Specifications

Ambient Temperature Range

  • Maximum

Approvals & Certifications

  • EN 61010, EN 60519-1

BSP Connection

  • Sample Connections: G 1/4"i DIN ISO 228/1

Differential Pressure

  • With Clean Filter Elements - psi: 0 to 0.87 (kPa: 0 to 6, Mbar: 0 to 60)

Electrical Connectors

  • 2 x PG 13 Cable Glands
  • 2.5 mm² Terminals

Electrical Rating

  • Temperature Alarm Contact: 0.25 A at 250 V (Alarm Point: ∆T 30° C (86° F) at TSOLL
  • Temperature Alarm Contact: 3 A at 250 V (Alarm Point: ∆T 30° C (86° F) at TSOLL

Environmental Protection

  • IP44-EN 60529

Flow Rate

  • Air: 0 to 500 L/hr at 20° C (68° F)

Materials of Construction

  • Material of Sample Contacting Parts: FPM
  • Material of Sample Contacting Parts: Glass
  • Material of Sample Contacting Parts: PTFE

Mounting

  • Wall Mounting

Power Supply

  • 115 V, 60 Hz
  • 230/240 Vac, 50 Hz, 350 VA

Pressure Range

  • Maximum

Sensor, Probe Type

  • Regulation of Temperature: Pt100

Temperature Range

  • 0° to 180° C (32° to 356° F), 180° C Set in Factory
