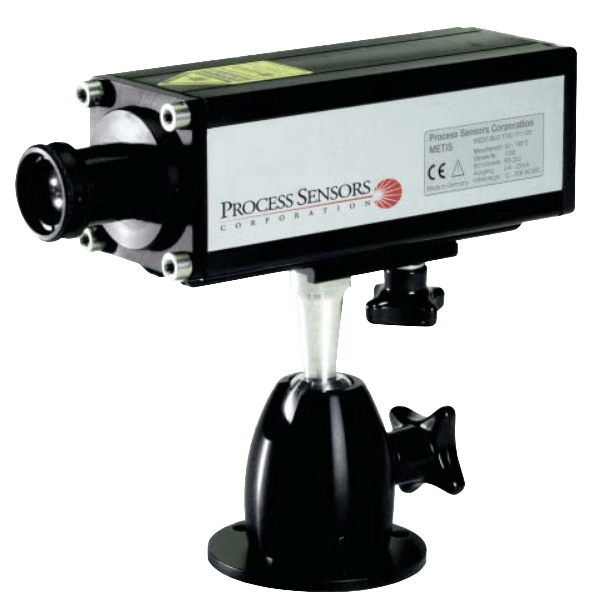

Metis MQ11 & MQ22 2-Color Pyrometer
Brand: Process Sensors Corporation
Pyrometer Series Metis MQ utilizes lead sulphide and Metis MB lead selenide detectors with filtered spectral response at relative short infrared wavelengths, and they are therefore often used to measure metal surfaces above 75°C [167° F](Metis MQ) or above 50° C [122° F](Metis MB).
The emissivity of these surfaces decreases with an increase wavelength, so they offer much better performance than other pyrometers with similar low zero scale temperatures, but with longer wavelength response.
Features- Self-contained, stand alone operation
- Wide temperature range selections from 300° to 3500° C (572° to 6332° F)
- Through lens sighting, laser aiming, or video
- Superior optical resolution (FOV 250:1)
- Variable focus optics for quick adjustment
- Fast response - 2 milliseconds, adjustable
- Simultaneous Analog and digital outputs
- Bi-directional digital communications
- Durable IP65 rated housing
- Innovative, rugged designed accessories
Specifications
Accuracy
- ± 0.3 % of Measured Value in °C + 1° C Full Scale Temperatures < 1,500° C (2,732° F)
- ± 0.5 % of Measured Value in °C Full Scale Temperature < 2,500° C (4,532° F)
- ± 0.7 % of Measured Value in °C + 1° C Full Scale Temperature < 3,200° C (5,792° F)
Ambient Temperature Range
- Fiber Optic Cable & Lens: 0° to 250° C (32° to 482° F)
- Pyrometer: Operation -10° to 70° C (14° to 158° F)
Applications
- Ceramics
- Composites
- Heat Treating & Annealing
- Induction Heating
- Kilns
- Metal
- Nuclear
- Research & Development
- Sintering
- Steel
- Vacuum Furnaces
- Welding
Approvals & Certifications
- CE According to EU Directives for Electromagnetic Immunity
Communication
- Baudrate: 57.6 Kbps
- Digital
- PROFIBUS
- RS-232
- RS-485
Display
- Touch Screen
Electrical Connectors
- 12-Pin Connector
- RCA/BNC Connector
- SMA Connector
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
Frequency
- 500 MHz
Length
- 3.11” (79 mm)
Mounting
- Front Mounting
- Rail Mounting
Output
- Analog Output Signal: 0-20 mA Switchable 500 ohms, Max.
- Analog Output Signal: 4-20 mA
Power Supply
- 24 Vdc (± 15-30 Vdc)
Repeatability
- 0.1 % of Measured Value in °C + 1° C
Resolution
- Black/White 628 x 582 Pixels
- Digital 0.1° C
- Superior Optical Resolution: 250: 1
- Temperature Resolution: Analog < 0.1 % of Adjusted Temperature Range
Response Time
- 2 milliseconds with Dynamic Adaptation at Low Signal Levels, Adjustable up to 10 seconds
Storage Temperature
- -20° to 70° C (-4° to 158° F)
