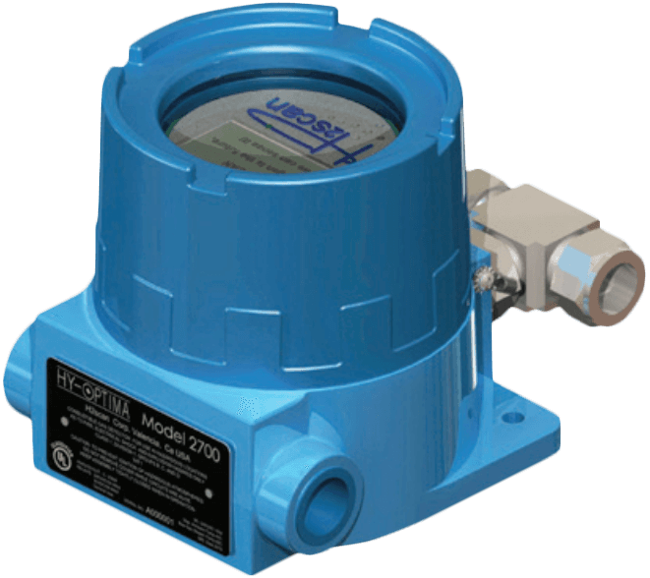

SERVOTOUGH H2scan Hydrogen Process Analyzer
Brand: SERVOMEX
The H2scan hydrogen process analyzer features thin film technology that provides a direct hydrogen measurement that is not cross-sensitive to other gases.
The H2scan is ideal for applications where real-time, hydrogen specific measurements can enhance process efficiencies, diagnostics and maintenance management.
The H2scan does not require significant application development for each mix of hydrocarbon gases, yet it still exceeds industry standards.
Used as a compliment to the light hydrocarbon analysis capability of the SERVOTOUGH SpectraScan, the combination of the two new and innovative technologies used challenges traditional GC analysis.
By producing an accurate measurement at considerably faster speed, the H2scan/SpectraScan combination is a superior, yet simpler, detection for recycled and waste gas, and heating valve applications, achieved at considerably lower implementation and product lifetime costs.
Specifications
Brand
Accuracy
- 0.15%
- 0.3%
- 1%
Approvals & Certifications
- ATEX (Ex II 2 G ExdIIB + H₂ T4 Gb - 2700 Series), (Ex II 1 G Exia IICT4 - Remote Control)
- CSA (CSA 22.2 No. 30-M1986 R(2012) - 2700 Series), (CAN/CSA C22.2 No. 157-92 - Remote Control)
- UL (Class I, Div. 1, Groups B, C, D UL 508,1203 - 2700 Series), (Class I, Div. 1, Grade A, B, C, D, UL 913 - Remote Control)
Measuring Range
- 0.1 to 100 %
Operating Temperature
- -20° to 55° C (-4° to 131° F)
