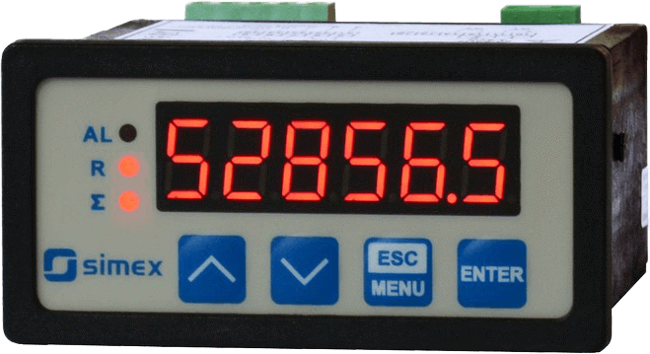

SPI-73 Flow Meter
Brand: SIMEX sp. z o.o.The SPI-73 flow counters are designed to work together with flow transducers equipped with contact or electronic inputs.
The purpose of flow counters is to measure the instantaneous flow value and to record the total flow of media like liquids, gases or loose materials.
A wide range of total flow indication: up to 16 digits allows controlling the flow value for a long operation time.
The REL / OC control output can be programmed depending on the instantaneous flow value, batcher or total flow value.
The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features- Flow Meter, Totalizer
- 1 Pulse Counting Input
- 1 REL / OC Output
- Power Supply Output: 24V DC
- RS-485 / Modbus RTU
- Display of Instantaneous and the Total Flow Values
- ACCESS Option - Easy Threshold Modification
- Free Configuration Software S-Config
Specifications
Brand
Number of Inputs
- 1
Input Type
- Pulse
Input Levels
- Low: 0...1V, High: 10...30 V
Input Frequency
- Maximum 10 kHz
Output Type
- Relay I=1A, U=30 Vdc/250 Vac (cosø=1)
- Open Collector: I=30 mA, U=30 Vdc, P=100 mW
Measurement Method
- Electrical
- Pulse
Power Supply
- 16...35 Vac, 19...50 Vdc
- 85..260 Vac/dc
- 11,4...15 Vac/dc
Display
- LED
- 6 x 9 mm
- Red
Communication Interface
- RS-485 / Modbus RTU
Operating Temperature
- 0...+50° C
- -20…+50° C
Protection Class
- IP 20: Case and Connection Clips
- IP 65: Front
- Optional Integrated Frame for Panel Cut-out Sealing
Case Material
- NORYL-GFN2S E1
Mounting
- Panel
Case Dimensions
- 72 x 36 x 97 mm
