Victaulic® Knife Gate Valve Series 795

Brand: Unified Alloys

Victaulic in-line maintenance knife gate valves reduced rigging during maintenance protects your crew from hazards.

No more chains, pulleys or ropes during maintenance for this valve. All you need are simple hand tools to get the job done.

This valve can be maintained up to 95% faster when compared to competitor gate valves.

Save hours of labor by not having to secure and tear out the entire valve from the pipeline.

The Victaulic knife gate valve maintenance cycle can be accomplished in just mere minutes.

This valve won’t burden your boneyard because it never needs to be removed from the pipeline.

The only wear parts on this valve are enclosed in a single cartridge kit, and after scheduled maintenance shutdowns all you're sending away is the old kit.

That's a fraction of the shelf space and dead weight when compared to the whole valve you’re used to dragging around.
Features
  • Available in sizes 3 – 12"/80 – 300 mm
  • Designed for fluid lines containing solids and abrasive materials
  • Intended for use in on-off service (no throttling)
  • Joins steel pipe
  • Actuation options:
    • Hand wheel (3 – 8"/80 – 200 mm)
    • Bevel gear (10 – 12"/250 – 300 mm)
    • Pneumatic Cylinder

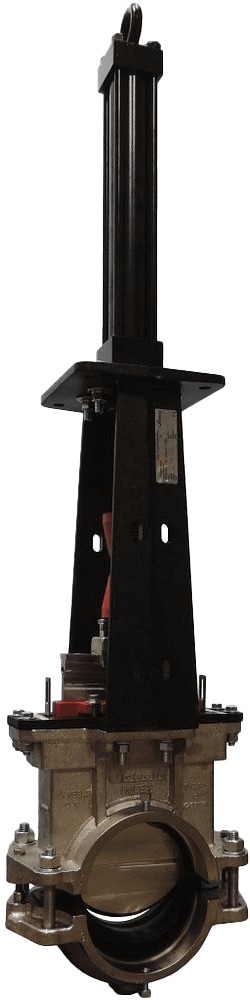

    • Hydraulic Cylinder
    • Multi-turn Electric Motor Operator
  • Rated to 150 psi/1035 kPa/10 bar for unidirectional service.
  • Offers shutoff isolation without expelling media from the bottom of the valve
  • Knife, seat and packing can be replaced without removing the valve from the pipeline
  • Features a unidirectional polyurethane seat
  • Lower housing includes a flush port for cleaning out the valve during maintenance

1 - 12 of 5,760 Part Numbers
V-030-795-G-N-E-1-9-0-0-1
V-030-795-G-N-E-1-9-0-0-1
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - None
  • Enclosure Options - None
  • Hardware - Standard - Carbon Steel Zinc Plated
V-030-795-G-N-E-1-9-0-0-2
V-030-795-G-N-E-1-9-0-0-2
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - None
  • Enclosure Options - None
  • Hardware - Stainless Steel
V-030-795-G-N-E-1-9-0-9-1
V-030-795-G-N-E-1-9-0-9-1
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - None
  • Enclosure Options - Special
  • Hardware - Standard - Carbon Steel Zinc Plated
V-030-795-G-N-E-1-9-0-9-2
V-030-795-G-N-E-1-9-0-9-2
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - None
  • Enclosure Options - Special
  • Hardware - Stainless Steel
V-030-795-G-N-E-1-9-0-A-1
V-030-795-G-N-E-1-9-0-A-1
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - None
  • Enclosure Options - Weatherproof Enclosure
  • Hardware - Standard - Carbon Steel Zinc Plated
V-030-795-G-N-E-1-9-0-A-2
V-030-795-G-N-E-1-9-0-A-2
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - None
  • Enclosure Options - Weatherproof Enclosure
  • Hardware - Stainless Steel
V-030-795-G-N-E-1-9-0-B-1
V-030-795-G-N-E-1-9-0-B-1
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - None
  • Enclosure Options - Hazardous Location Enclosure
  • Hardware - Standard - Carbon Steel Zinc Plated
V-030-795-G-N-E-1-9-0-B-2
V-030-795-G-N-E-1-9-0-B-2
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - None
  • Enclosure Options - Hazardous Location Enclosure
  • Hardware - Stainless Steel
V-030-795-G-N-E-1-9-1-0-1
V-030-795-G-N-E-1-9-1-0-1
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - Pneumatic with Solenoid Valve (24VDC)
  • Enclosure Options - None
  • Hardware - Standard - Carbon Steel Zinc Plated
V-030-795-G-N-E-1-9-1-0-2
V-030-795-G-N-E-1-9-1-0-2
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - Pneumatic with Solenoid Valve (24VDC)
  • Enclosure Options - None
  • Hardware - Stainless Steel
V-030-795-G-N-E-1-9-1-9-1
V-030-795-G-N-E-1-9-1-9-1
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - Pneumatic with Solenoid Valve (24VDC)
  • Enclosure Options - Special
  • Hardware - Standard - Carbon Steel Zinc Plated
V-030-795-G-N-E-1-9-1-9-2
V-030-795-G-N-E-1-9-1-9-2
  • Size - 3"
  • Pipe/Seat Gasket - EPDM (EP 12)
  • Actuation Type - Special
  • Actuation Control Options - Pneumatic with Solenoid Valve (24VDC)
  • Enclosure Options - Special
  • Hardware - Stainless Steel
1 - 12 of 5,760 Part Numbers

Specifications

Body / Coupling

  • Ductile Iron conforming to ASTM A536, Grade 65-45-12

Body Coating

  • Electroless Nickel - Abrasion and corrosion resistance

Seat

  • Polyurethane

Retaining Plate

  • For sizes 6 - 12”/150 - 300 mm Ductile Iron Conforming to ASTM A536, Grade 65-45-12 - Black Allkyd Enamel Coating
  • For sizes 3 - 4”/80 - 100 mm AISI 1045 Carbon Steel - Black Alkyd Enamel Coating

Knife Seal

  • Polyurethane

Pipe Gaskets/Seat Gaskets

  • Grade “T” Lubricated Nitrile - Nitrile (Orange color code). NOT RECOMMENDED FOR HOT WATER SERVICES OVER +150° F/+66° C. -0° F to +150° F/18° C to +66° C
  • Grade “E” EPDM - EPDM (Green color code). NOT COMPATIBLE FOR PETROLEUM SERVICES. -30° F to +150° F/-34° C to +66° C.

Packing Gland

  • Ductile Iron conforming to ASTM A536, Grade 65-45-12 - Orange Allkyd Enamel Coating

Knife

  • UNS S31600 Stainless Steel

Clean-Out Plug

  • UNS S41600 Stainless Steel

Gate Connector

  • Ductile Iron conforming to ASTM A536, Grade 65-45-12 - Electroless Nickel Coating

Stem

  • UNS S31600 Stainless Steel

Drive Nut

  • UNS S17400 Stainless Steel

Drive Nut Spacer

  • UNS S17400 Stainless Steel

Bushing

  • UNS S17400 Stainless Steel

Yoke

  • Ductile Iron conforming to ASTM A536, Grade 65-45-12

Alignment Dowel Pins

  • ASME B18.8.2

Handwheel Key

  • CD Steel, Key Stock

Handwheel

  • S235JR Structural Steel - Black Alkyd Enamel Coating

Hardware

  • Standard: Carbon Steel Zinc-Plated
  • Optional: Stainless Steel

Stroke Limiter

  • Ductile Iron conforms to ASTM A536 Grade 65-45-12 - Orange Allkyd Enamel Coating

Documentation

Installation Instruction

Product Specifications
