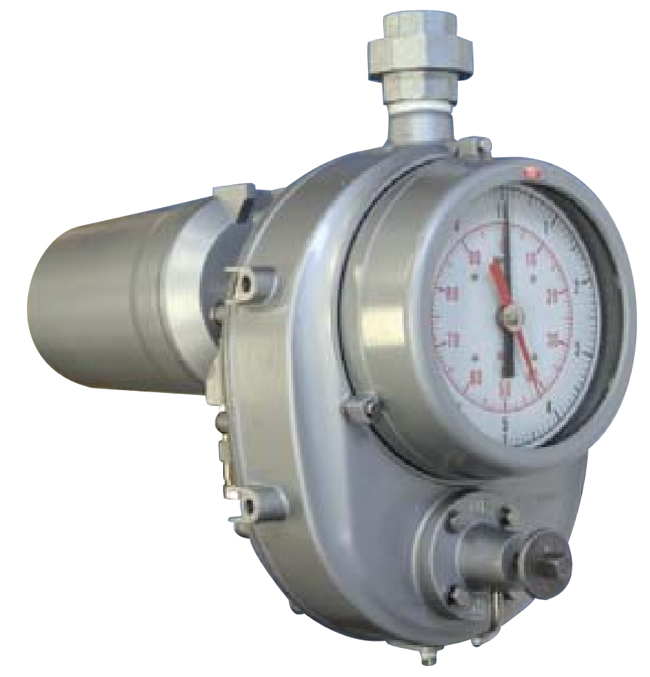

FT-1000/FP-1000 Float Type Tank Gauge

Brand: Tokyo Keiso Co, Ltd

FT-1000: The most popular float tank gauge. The float is normally guided by guide wires. The liquid level in tanks are indicated by two pointers or by digital counter. Widely applicable from normal cone roof tanks to high pressure spherical tanks. Different types of transmitters are additionally available.

FP-1000: Pipe sealed type with doughnut float! The liquid in tanks is perfectly isolated by magnetic coupling construction. FP-1000 is suitable for measurement of corrosive liquids.
Features
  • Pure Mechanical measurement
  • Perfect sealing by magnet coupling
  • Wide material selection
  • Supporting instruments

Specifications

Enclosure, Body Material

  • 304 Stainless Steel Standard
  • 316 Stainless Steel
  • 316L Stainless Steel
  • PVC

Environmental Protection

  • IP54
  • IP65

Materials of Construction

  • Guide Elbow & Guide Wire Knob: Iron Casting (FC250)
  • Indicator & Guide Elbow: Cast Stainless Steel (SCS13, 14)
  • Indicator, Guide Elbow: Aluminum Die Casting (ADC12)
