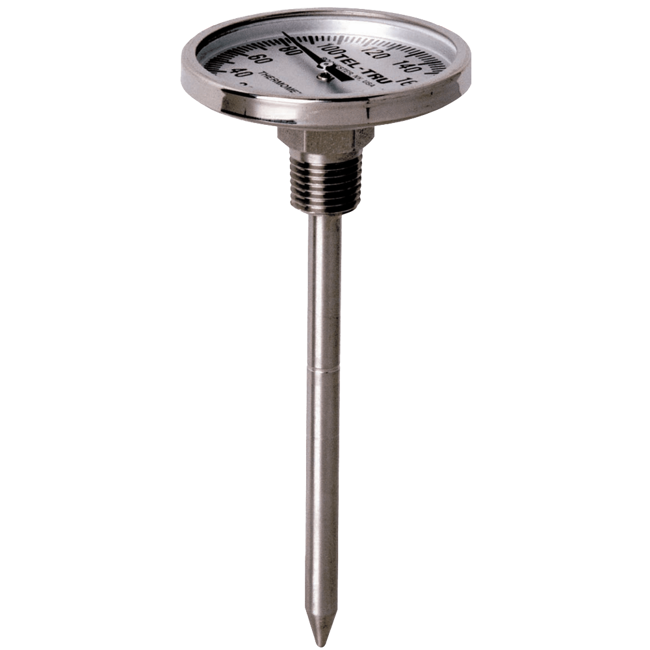

1-3/4" & 2" Back Connected Industrial Bi-Metal Thermometer

Brand: Tel-Tru Manufacturing Co.

A smaller size, heavy duty, rear connected unit commonly used in OEM equipment and light industrial applications.

Specifications

Accuracy

  • ± 1 % of Full Span Per ASME B40.3 Grade A

Applications

  • Light Industrial Applications
  • OEM Equipment

Diameter

  • GT Model: Stem Diameter: 0.150” (4 mm) Standard up to 18” Stem
  • LN Model: Stem Diameter: 0.25” (6.35 mm) Standard up to 42” Stem
  • LN Model: Stem Diameter: 0.375” (9.5 mm) is Standard over 42” Stem
  • Stem Diameter: 0.140 to 0.375” (3.6 to 9.5 mm)

Enclosure, Body Material

  • External Parts: 304 Stainless Steel

Fill Material

  • Silicone

Lens

  • Acrylic Lens
  • Glass Lens
  • Polycarbonate Lens
  • Tempered Glass

Materials of Construction

  • Dial: Anodized Aluminum with Large Black Numbers & Graduations

NPT Connection

  • 1/4” NPT Male
  • 1/8” NPT Male
  • 3/8” NPT Male

Seal Type

  • Hermetic Seal as Per ASME B40.3 Dustproof & Leakproof

Size

  • Dial: 1-3/4”
  • Dial: 2” (51 mm)

Stem Length

  • 2-1/2 to 120” (63.5 to 3,048 mm) - LN Model
  • 2-1/2 to 18” (63.5 to 457 mm) - GT Model

Temperature Range

  • -75° to 550° C (-100° to 1,000° F)
