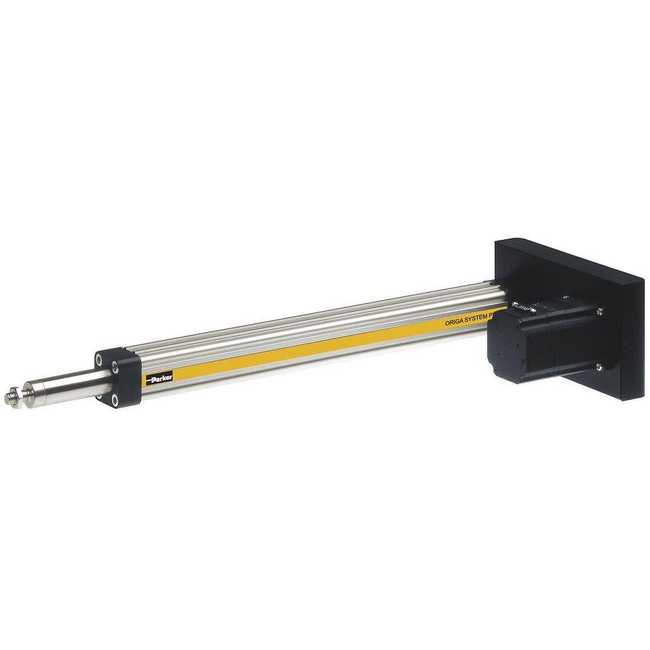

OSPE50-SBR Screw Driven Electric Cylinder/Linear Actuator with Piston Rod

OSPE50-SBR Screw Driven Electric Cylinder/Linear Actuator with Piston Rod

Brand: Parker Hannifin
Add Product to My Catalog

Offering thrust forces to 1200N, strokes to 0.5m and an ISO conforming piston rod end, the OSPE50-SBR ball screw driven rod-style linear actuator is suitable for continuous duty operation and offers accurate path and position control.

The OSPE50-SBR ball screw driven electric linear actuators, with internal plain bearing guide and extending piston rod is suitable for continuous duty operation ideal for transfer handling operations within industrial, manufacturing and assembly environments.
Features
  • Ball screw driven rod actuator for precise high duty cycle applications
  • High acceleration and efficiency for demanding environments
  • Piston rod end conforming ISO 15552 (6431 Pneumatics cylinders)
  • Double row angular contact ball bearings for medium to high thrust load
  • Strip seal offering IP54 protection
  • Pre-configured motor and gearhead mounting kits for simplified installation

Specifications

Brand

Corrosion Resistant Option

  • No

Drive Type

  • Screw

IP Protection Rating

  • IP54

Maximum Acceleration (Inch/S2)

  • 196

Maximum Acceleration (m/S2)

  • 5

Maximum Speed (inch/sec)

  • 49.2

Maximum Speed (m/sec)

  • 1.25

Maximum Stroke (inch)

  • 19.68

Maximum Stroke (mm)

  • 500

Maximum Thrust (Lbs)

  • 269

Maximum Thrust (N)

  • 1200

Operating Temperature (°C)

  • -20° to +80° C

Operating Temperature (°F)

  • -4° to +176° F

Position Repeatability (± Inch)

  • 0.002

Position Repeatability (± mm)

  • 0.05

Profile Width (mm)

  • 87

Rod End Dimension

  • ISO 50

Series

  • OSP-E

  • Pick and Place Applications
  • Packaging, Labeling and Wrapping Systems
  • Pusher, Picker and Gripper Applications
  • Positioning
  • Feeding
  • Cutting
  • Markets:
    • Factory Automation
    • Miscellaneous Industrial
    • Miscellaneous Manufacturing
    • Packaging Machinery
    • Printing and Marking Equipment
    • Vehicle Assembly Facilities
    • Food & Beverage
