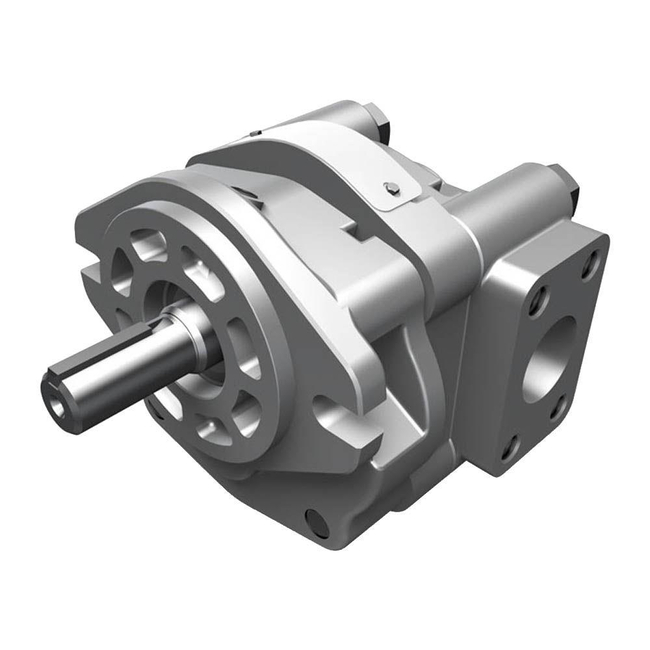

Iron and Aluminum Pumps - P16 Series

Iron & Aluminum Pumps - P16 Series

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s P16 fixed displacement gear pump offers a combination of  high performance and light weight due to combining a rugged cast iron pumping section with aluminum flange and port end covers.

This construction makes the P16 an ideal selection for the Mobile and Truck markets.

It’s available as a single or tandem pump with options for priority flow or relief valves.

 A clutch pump option is also available.
Features
  • Flow range to 38 gpm (143.8 lpm) per section, the TP16 is 32 gpm (121 lpm)
  • Priority Flow range 2 to 10 gpm (7.5-37.8 lpm) standard (PVP16 only)
  • Three-piece construction for distribution flexibility
  • Cast Iron pumping sections for durability
  • Aluminum cover plate and flange for excellent power to weight ratio
  • Journal bearings for long life
  • Multiple sections available

Specifications

Brand

Body Material

  • Aluminum / Cast Iron Body

Case Drain Option

  • No

Charge Pump Option

  • No

Circuit Type

  • Open

Configuration

  • Single / Tandem / Multiple

Control Method

  • N/A

Energy Recovery Capable

  • No

Filtration Option

  • No

Fluid Type

  • Standard Hydraulic Fluid / Phosphate Ester

Maximum Displacement (cm3/rev)

  • 64

Maximum Displacement (inch3/rev)

  • 3.9

Maximum Flow (gpm)

  • N/A

Maximum Flow (Lpm)

  • N/A

Maximum Fluid Temperature (°C)

  • 80° C

Maximum Fluid Temperature (°F)

  • 180° F

Maximum Noise Level (dBA)

  • N/A

Maximum Operating Pressure (bar)

  • 207

Maximum Operating Pressure (psi)

  • 3000

Maximum Radial Shaft Load (kg)

  • Consult Parker

Maximum Radial Shaft Load (Lbs)

  • Consult Parker

Maximum Speed (rpm)

  • 3600

Maximum Viscosity (SUS)

  • 7500

Maximum Weight (kg)

  • 9.1

Maximum Weight (Lbs)

  • 20

Media

  • N/A

Minimum Fluid Temperature (°C)

  • -20° C

Minimum Fluid Temperature (°F)

  • 0° F

Minimum Viscosity (SUS)

  • 50

Mounting Option

  • SAE

Port Connection

  • SAE, NPT, BSPP, ODT

Port Connection Type

  • Flange / Straight Threaded

Porting Location

  • Side Ports / Rear Ports

Pump Technology

  • Gear

Pump Type

  • Fixed

Rotation

  • Clockwise / Counter Clockwise

Sensor Type

  • N/A

Shaft Type

  • SAE

Thru-Drive Capability

  • No

  • Power Steering Pumps – Priority Valves Available
  • Dump Beds
  • Salt and Sand Spreaders
  • Aerial Lift
  • Low Boy Trailers
