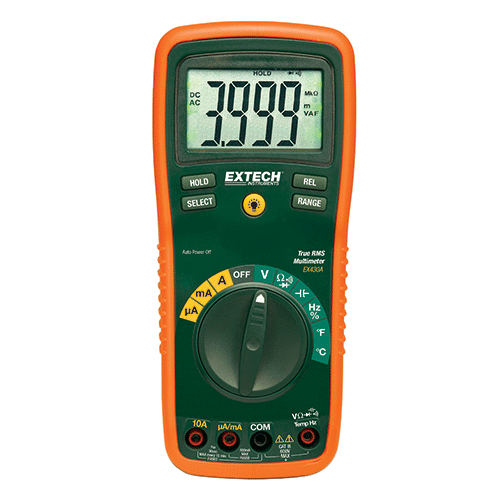

EX430A 11 Function True RMS Professional MultiMeter
Brand: ExtechThe Extech EX430A True RMS Autoranging Multimeter (with K Type, Capacitance, Frequency, and Duty Cycle) is a professional grade True RMS multimeter capable of performing a wide range of measurements.
Functions include AC and DC voltage to 600V, AC and DC current to 10A, resistance to 40MOhm, continuity and diode test.
Also includes a Type K thermometer function for contact or air temperature measurements from -4 to 1832°F (-20 to 750°C).
Advanced functions include Capacitance, Frequency and Duty Cycle.
The meter comes complete with test leads, Type K temperature probe, 9V battery, protective holster, adjustable tilt stand and Velcro hanging strap.
Features- True RMS DMM with 11 functions and 0.3% basic accuracy.
- AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Diode/Continuity, Duty Cycle.
- Input fuse protection and mis-connection warning.
- 10A max Current.
- Type K temperature measurements.
- Data hold, Relative, Auto power off.
- Large-digit backlit LCD.
- Complete with CAT III test leads, tilt stand, protective holster, velcro hanging strap, Type K bead wire temp probe and 9V battery.
Specifications
Brand
AC Current
- 0.1 μA to 10 A
AC Voltage
- 0.1 mV to 600 V
Averaging / True RMS
- True RMS
Basic Accuracy, Vdc
- ± 0.3 %
Capacitance
- 0.01 NF to 100 μF
DC Current
- 0.1 μA to 10 A
DC Voltage
- 0.1 mV to 600 V
Dimensions
- 7.4 x 3.2 x 2” (187 x 81 x 50 mm)
Diode Test, Continuity
- Yes
Duty Cycle
- 0.1 % to 99.9 %
Frequency
- 0.001 Hz to 10 MHz
Resistance
- 0.1 Ω to 40 MΩ
Temperature (Type K)
- -4° to 1382° F (-20° to 750° C)
Weight
- 0.75 lbs (342 g)
