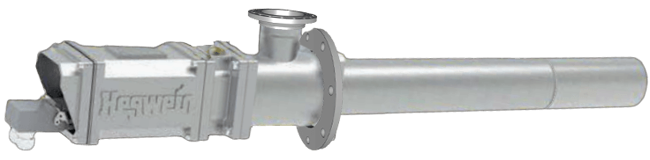

Hegwein 3600 kW Oil Fired Igniter
Brand: DuragFor the ignition of large coal or heavy fuel oil fired burners in utility boilers.
Features- Compact design with integrated ignition module and ionization flame monitor/ burner control
- Built-in flame rod, ideally located
- No high-voltage cable required on site
- Guaranteed electromagnetic compatibility
- Rugged, low-maintenance design
- Outer tube lengths available in 10-mm increments
- For extra light fuel oil (diesel)
- Extremely concentrated and long pilot flame - typically no automatic retraction system required
- Class 1, 2 or 3 igniters according to NFPA also available
- Smoke free flame
- Also available for special marine diesel operation
Specifications
Brand
Ambient Temperature Range
- -30° to 60° C (-22° to 140° F)
Applications
- Ignition of Large Oil or Heavy Fuel Oil Fired Burners in Utility Boilers
Approvals & Certifications
- AGA
- Class 1, 2 or 3 Igniters According to NFPA
Approvals & Certifications
- Ex
- FM
BSP Connection
- Atomising Air Port: 1/2" BSPP Female
- Oil Port: 3/8" BSPP Female
Diameter
- Outer Tube: 6.3" (160 mm)
Electrical Rating
- Ignition: 2 x 7.5 kV Ignition Electrode Against Ignition Electrode
Environmental Protection
- IP54
- IP65
Flange Size - 3” (DN 80)
- 3" (DN 80) - PN 6
Flange Size - 4” (DN 100)
- 4" (DN 100) - PN 6
Length
- Flame: 118" (3,000 mm) - max.
- Outer Tube: 14.17" to 196.9" (360 to 5,000 mm)
Media
- Oil
Operating Pressure
- Air - psig: 0.145 (kPa: 1, Mbarg: 10)
Power
- Heat Release, Max.
Pressure Range
- Oil, Atomising Air - psig: 72.52 (kPa: 500, barg: 5) - Max.
Pressure Type
- Gauge
Process Temperature
- Oil: 20° C (68° F)
Rotation
- Air Port: Rotatable 4 x 90°
