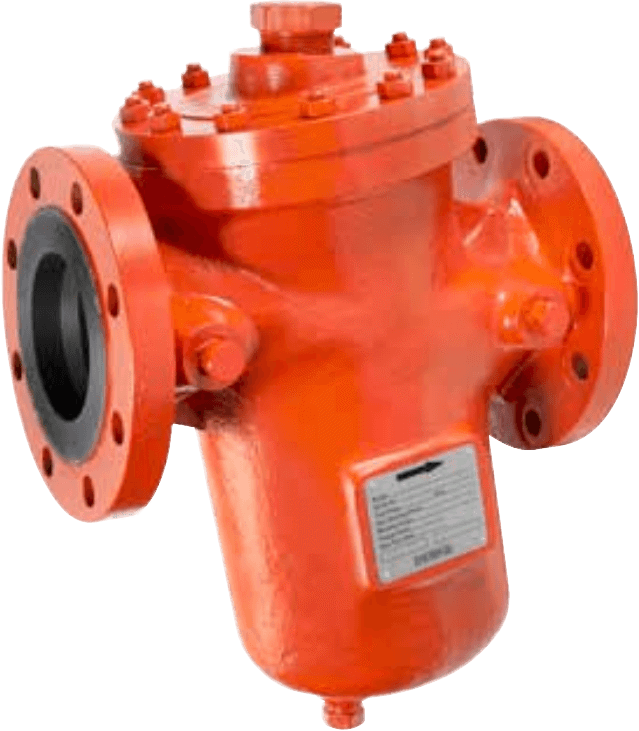

Smith Meter® E-Type Steel Strainers

Brand: TechnipFMC

Smith Meter® E-Type Steel Strainers are necessary to provide protection for metering systems against dirt and other foreign material.

The large screen area and stream-lined flow path (10° slant) minimize pressure drop.

The sturdy basket can withstand a 50 psi differential without bursting and is easily removed for cleaning
Features
  • Streamlined flow path for lower pressure drop
  • Large screen area for less frequent cleaning
  • Separable inner basket for easy cleaning
  • Pressure Taps (½ NPT) upstream and downstream nozzles
  • Flow Orientation can be installed horizontally or vertically
  • Drain threaded NPT

Specifications

Brand

Design/Fabrication

  • According to PED 97/23/EC

Flanges

  • Raised Face Suitable to fit with: DIN EN PN 16 or Standard ANSI 150 lb flanges

Air Vent

  • 1/2” NPT plugged

Differential Pressure Taps

  • 1/2” NPT plugged

Inner Liner

  • Choice of 10, 20, 40 (Standard), or 80 mesh Stainless Steel

Seals/Temperature Limits

  • Buna Seals: -29° C to 100° C
  • Viton Seals: -12° C to 100° C
  • PTFE Seals: -29° C to 100° C

Outer Basket and Internals

  • Zinc-plated Carbon Steel and Cast Iron
