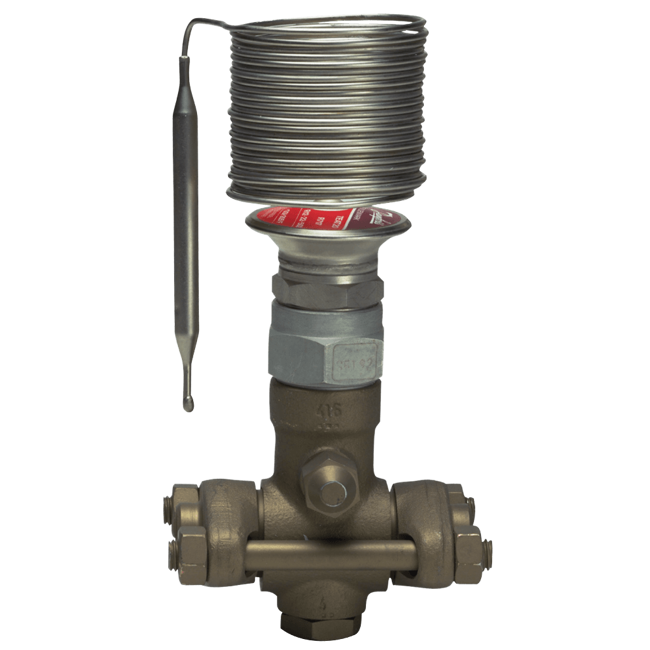

TEAT Desuperheating Valve
Brand: DanfossTEAT desuperheating valves are used to inject refrigerant into the suction line of the refrigeration system to reduce the high discharge temperatures that can occur when the system operates with highly superheated suction vapour.
TEAT valves are also used in two-stage refrigeration plant to control liquid injection into the intercooler. The bulb is installed on the discharge line from the highpressure compressor.
The theoretically obtainable discharge temperature for given operating conditions can be found in the h, log p diagram for the refrigerant concerned.
TEAT valves have a further application: the temperature regulation of the medium, e.g. the temperature of the oil in a screw compressor.
1 - 12 of 34 Part Numbers
068G2050
- Type & Rated Capacity - TEAT 20-1
- Regulating Range - 35° to 65° C (95° to 149° F)
- Model - Separate Orifice Assembly
068G2051
- Type & Rated Capacity - TEAT 20-2
- Regulating Range - 90° to 130° C (194° to 266° F)
- Model - Separate Orifice Assembly
068G2052
- Type & Rated Capacity - TEAT 20-3
- Regulating Range - 55° to 95° C (131° to 203° F)
- Model - Separate Orifice Assembly
068G2053
- Type & Rated Capacity - TEAT 20-5
- Regulating Range - 35° to 65° C (95° to 149° F)
- Model - Separate Orifice Assembly
068G2054
- Type & Rated Capacity - TEAT 20-8
- Regulating Range - 90° to 130° C (194° to 266° F)
- Model - Separate Orifice Assembly
068G2055
- Type & Rated Capacity - TEAT 20-12
- Regulating Range - 55° to 95° C (131° to 203° F)
- Model - Separate Orifice Assembly
068G2056
- Type & Rated Capacity - TEAT 20-20
- Regulating Range - 55° to 95° C (131° to 203° F)
- Model - Separate Orifice Assembly
068G2057
- Type & Rated Capacity - TEAT 85-33
- Regulating Range - 90° to 130° C (194° to 266° F)
- Model - Separate Orifice Assembly
068G2058
- Type & Rated Capacity - TEAT 85-55
- Regulating Range - 35° to 65° C (95° to 149° F)
- Model - Separate Orifice Assembly
068G2059
- Type & Rated Capacity - TEAT 85-85
- Regulating Range - 90° to 130° C (194° to 266° F)
- Model - Separate Orifice Assembly
068G3260
- Type & Rated Capacity - TEAT 20-2
- Regulating Range - 55° to 95° C (131° to 203° F)
- Model - Separate Thermostatic Element
068G3261
- Type & Rated Capacity - TEAT 20-1
- Regulating Range - 90° to 130° C (194° to 266° F)
- Model - Separate Thermostatic Element
1 - 12 of 34 Part Numbers
Specifications
Brand
Approvals & Certifications
- BV
- CRN
- DNV
- EAC
Capillary Length
- Capillary Tube: 16.4 feet (5 metres)
Enclosure, Body Material
- Valve Housing: Cast Iron GGG-40.3
Gasket Material
- Non-Asbestos
Media
- Ammonia
- HCFC
- Non-Flammable HFC
- Refrigerants
Operating Pressure
- psi: 290 (kPa: 2,000, bar: 20) - Max.
Proof Pressure
- psi: 435.1 (kPa: 3,000, bar: 30) - Max.
Temperature Range
- Regulating Range: 35° to 130° C (95° to 260° F)
Welded Connection
- 1/2” Inlet/Outlet Weld Flange
- 3/4” Inlet/Outlet Weld Flange
This applies when, for example:
- a compressor runs either with low suction pressure or with high condensing temperature
- a compressor runs with both low suction pressure and high condensing temperature. This applies especially to systems with R 22
- a compressor receives highly superheated suction vapour
- a compressor runs with capacity regulation by hot gas bypass
