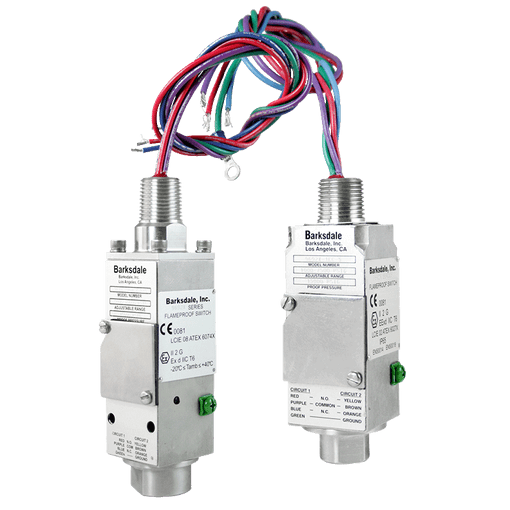

Series 9671X, 9681X, 9692X Pressure Switch
Brand: BarksdaleBarksdale's explosion proof compact pressure switches are ideal for hazardous location hydraulic applications and many of your other industrial control needs.
Series 9671X/9681X are available in vacuum and pressure ranges up to 500 psi with a high proof pressure of 1000 psi, and series 9692X is available in pressure ranges up to 10,000 psi with a high proof pressure of 15,000 psi, these pressure switches come with a SPDT or DPDT limit switch.
The rugged design provides you with the reliability you need for your mission critical applications.
Features- Diaphragm Seal Option Available
- NEMA 4X, 7 & 9
- Safe to Adjust During Operation
- Tamper Proof Cover
- SPDT and DPDT Switch Option
- NACE Compliant
- Dual Seal for Div 1 & 2 applications
- UL, CSA and ATEX approved
Specifications
Brand
Accuracy
- ± 2 % of Full Scale
Adjustment Type
- Factory Set (Pre-Set)
- Field Adjustable
- Internal Adjustment Typical with Built-in Locking Set-Screws
Ambient Temperature Range
- -20° to 40° C (-4° to 104° F)
Applications
- BOP Closing Units
- Chemical & Petrochemical
- Oil & Gas Applications
- Pipelines
- Pulp & Paper
- Pump & Gas Compressors
- Safety Panels
- Turbines & Compressors
Approvals & Certifications
- ATEX
- CE
- CSA
- Dual Seal
- UL
Deadband, Approximate
- bar: 0.07 to 137.9
- Inches Hg: 4 to 9
- kPa: 6.8 to 13,789.5
- psig: 1 to 2,000
Diaphragm Material
- Buna-N
- Ethylene Propylene (EPR)
- Viton
Electrical - Free Leads
- 18” (45 cm) Free Leads
Electrical Connectors
- 1/2” NPT Male Conduit Connection
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 1 A at 125 Vac
- 11 A at 125/250 Vac
- 5 A at 30 Vdc
Enclosure, Body Material
- Aluminum
- Stainless Steel
Environmental Protection
- IP66
- NEMA 4X, 7 / IP66
- NEMA 7
NACE & NIST
- NACE
NPT Connection
- 1/4” NPT Female
O-Ring Material
- Buna-N
- Ethylene Propylene (EPR)
- Viton
Process Connection Material
- 316 Stainless Steel
Proof Pressure
- bar: 69 to 1,034
- kPa: 6,895 to 103,421
- psig: 30 to 15,000
SAE Connection
- 7/16”-20 SAE Female
Set Point - Decreasing
- bar: -0.1 to 606.9
- Inches Hg: -1 to 21
- kPa: -13.7 to 60,674
- psig: -2 to 8,800
Set Point - Increasing
- bar: -0.2 to 689.7
- Inches Hg: -5 to 30
- kPa: -20.6 to 68,947
- psig: -3 to 10,000
Switch Type
- DPDT
- SPDT
System Pressure
- bar: -0.2 to 1,034
- kPa: -20.6 to 103,421
- psig: -3 to 15,000
