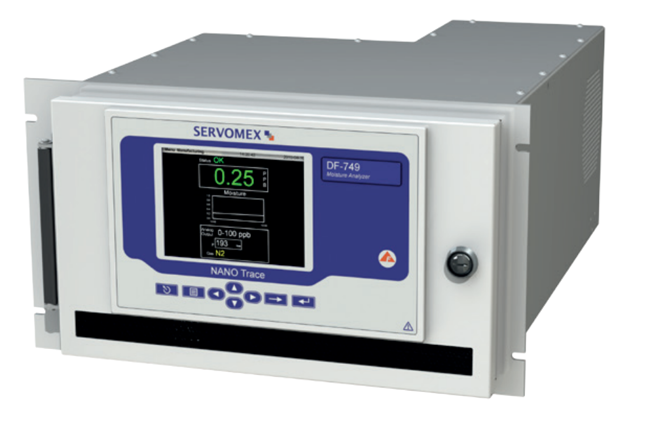

DF-749 NanoTrace Tunable Diode Laser Sensor Trace/Ultra-Trace Moisture Analyzer
Brand: SERVOMEXThe DF-749 provides trace and ultra-trace moisture contaminant measurements in various background gases including nitrogen, hydrogen, helium, argon and oxygen.
Ideal for quality checking of UHP gases used in LCD and LED manufacture, the DF-749’s compact form makes it easily portable for easy cart or mobile use. A robust hardware/software design virtually eliminates dry down times often associated with UHP gas checking.
Offering an ultra-sensitive Lower Detection Limit (LDL) of 250 ppt, this device uses industry-leading Tunable Diode Laser (TDL) sensing technology, delivering ultra-reliable baseline measurements and a fast speed of response.
This analyzer is also highly affordable over product life, with a robust sensor construction that has low lifetime maintenance requirements and a zero-drift measurement stability that greatly extends calibration intervals. Factory pre-calibration also provides simplified set up.
Specifications
Brand
Accuracy
- ± 3 % of Reading / ± 0.4 ppb, whichever is greater
Approvals & Certifications
- EU EMC Directive
- EU Low Voltage Directive (LVD)
- IEC 61010-1
Environmental Protection
- IP10
- NEMA 1
Operating Temperature
- 10° to 80° C (50° to 176° F)
Pressure Range
- Sample Pressure - psig: 5 to 30 (bar: 0.345 to 2.07, kPa: 34.5 to 207) (1.36 to 3.08 barA)
Process Connection - Other
- 1/4” Compression Fitting
Range
- 0 to 20 ppm to 0 to 2,100 ppb Min
