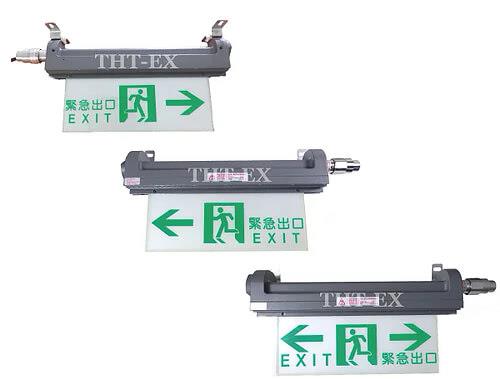

E1215 Explosion-Proof Exit Light
Brand: Top Hi-Tech Inc- Volt.: 110-220 V AC
- Watt.: 4 W
- Frequency: 50 Hz / 60 Hz
- Power Factor: 0.4 ~ 0.5
Ambient Temperature: -20° C ~ +40° C, T6
Degree of Protection - IP68 / NEMA 6P
TS Certification:
- Ex db IIC T6 Gb
- Ex tb IIIC T85˚ C Db
- IP68 rated for wet location
- Salt spray 1000 hrs passed
Applicable Location:
- Zone 1 & Zone 2
- Zone 21 & Zone 22
Specifications
Brand
Approvals & Certifications
- cULus
- IEC/IECEx
Beam
- ≥ 110°
Enclosure, Body Material
- Aluminum Alloy
Environmental Protection
- IP67
- IP68
- NEMA 6
- NEMA 6P
Frequency
- 50/60 Hz
Lens
- Tempered Glass - IEC Standards Impact-Resistant > 4 Joule
Lumens
- Per Watt: ≥ 100 (Cool White) / ≥ 90 (Warm White)
Operating Temperature
- -20° to 40° C (-4° to 104° F)
Voltage
- 120 V / 277 V / 480 Vac
Wattage
- 120 W (0.25 ~ 1.0 A) 140 W (0.29 ~ 1.16 A)
